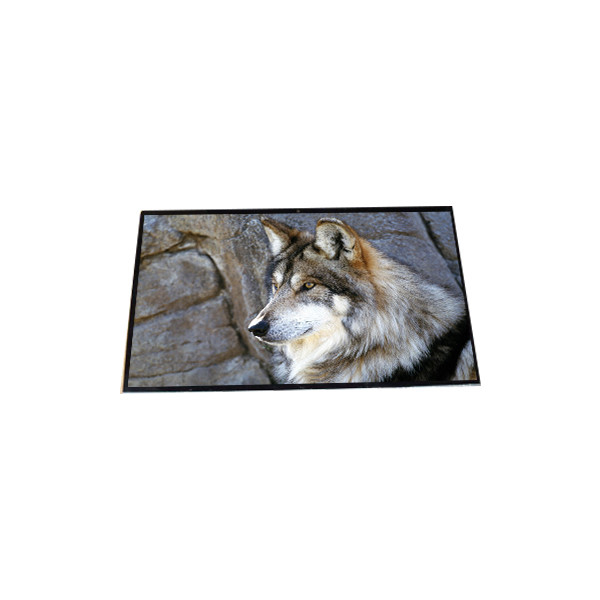

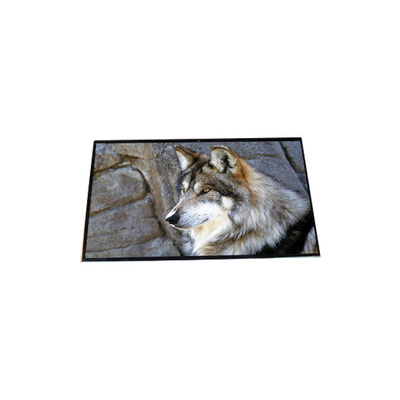

LP133WF9-SPF3 13.3 inch LVDS 30 pins LCD screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WF9-SPF3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WF9-SPF3 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 293.76(W)×165.24(H) Mm | Operating Mode: | IPS, Normally Black, Transmissive |
| Support Color: | 16.7M 100%sRGB | Light Source: | WLED, 15K Hours, With LED Driver |
| Designed For: | Laptop | Frequency: | 60Hz |
Product Description
LP133WF9-SPF3 13.3 inch LVDS 30 pins LCD screen Display
LP133WF9-SPF3 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP133WF9-SPF3 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | 295.76(W)×167.54(H) mm |
| Outline Dim. | 298.76(H)×176.24(V)×3.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 100%sRGB |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes), eDP1.4a , HBR1 (2.7G/lane) , 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LP133WF9-SPF3 13.3 inch LVDS 30 pins LCD screen Display | |
LP133WF9-SPF3 LCD Panel Attention:
LP133WF9-SPF3 LCD Panel Shipping and Package :
LP133WF9-SPF3 LCD Panel Shipping Information :
LP133WF9-SPF3 LCD Panel Return Note :
LP133WF9-SPF3 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LP133WF9-SPF3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LP133WF9-SPF3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LP133WF9-SPF3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LP133WF9-SPF3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
