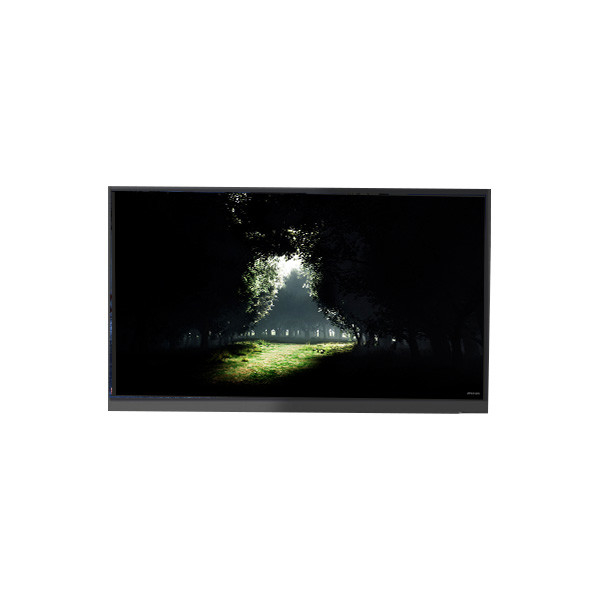

LP133WF8-SPH1 LCD Screen 13.3 inch LCD Panel for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP133WF8-SPH1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP133WF8-SPH1 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 293.76(W)×165.24(H) Mm | Operating Mode: | IPS, Normally Black, Transmissive |
| Support Color: | 16.7M 100%sRGB | Light Source: | WLED, 15K Hours, With LED Driver |
| Designed For: | Laptop | Frequency: | 60Hz |
Product Description
LP133WF8-SPH1 LCD Screen 13.3 inch LCD Panel for Laptop
LP133WF8-SPH1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP133WF8-SPH1 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Size | 300.26(W)×177.55(H)×4.4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 100%sRGB |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes), eDP1.4a , HBR1 (2.7G/lane) , 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LP133WF8-SPH1 LCD Screen 13.3 inch LCD Panel for Laptop | |
LP133WF8-SPH1 LCD Panel Attention:
LP133WF8-SPH1 LCD Panel Shipping and Package :
LP133WF8-SPH1 LCD Panel Shipping Information :
LP133WF8-SPH1 LCD Panel FAQ :
Q: How to order LG LP133WF8-SPH1 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
Q: What happen if the lcd pane LP133WF8-SPH1 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: When will my order 13.3 inch lcd panel LP133WF8-SPH1 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value of my order about LP133WF8-SPH1 ?
A: Yes , we can . But you need to leave message to us before shipping.
