LCD Screen Display Panel

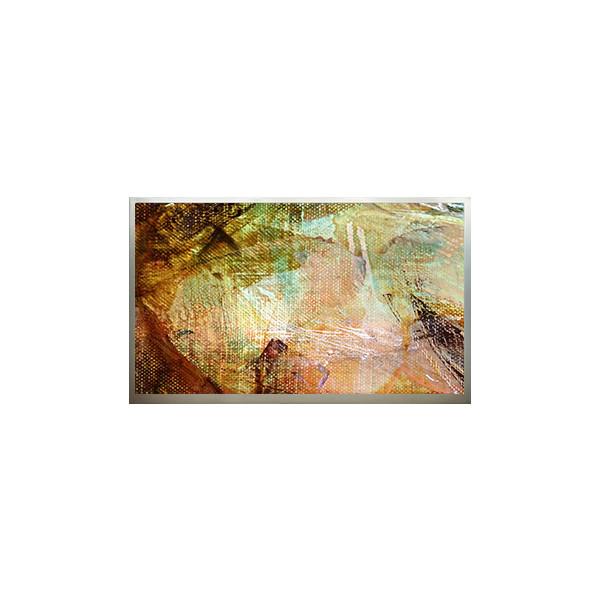

M220Z3-L07 1680*1050 22.0 inch TFT LCD Screen Monitor

All Category

Floor Standing Digital Signage

M220Z3-L07 1680*1050 22.0 inch TFT LCD Screen Monitor

Brand Name:	CMO
Model Number:	M220Z3-L07
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M220Z3-L07

Diagonal Size:

22.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1680(RGB)×1050, WSXGA+ 90PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

473.76(W)×296.1(H) Mm

Touch Panel:

Without

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M220Z3-L07 1680*1050 22.0 inch TFT LCD Screen Monitor

M220Z3-L07 LCD Panel Product details :

Brand	CMO
Model P/N	M220Z3-L07
Diagonal Size	22.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050, WSXGA+ 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	473.76(W)×296.1(H) mm
Bezel Opening	477.7(W)×300.1(H) mm
Outline Size	493.7(W)×320.1(H)×10.5(D) mm
Brightness	250 cd/m² (Typ.)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Best View on	-
Display Colors	16.7M 68%NTSC
Frequency	60Hz
Weight	2.03/2.08Kgs (Typ./Max.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Lamp Type	9S6P×2CN WLED , 25K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M220Z3-L07 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M220Z3-L07 LCD Panel Shipping and Package :

M220Z3-L07 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M220Z3-L07 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M220Z3-L07 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of M220Z3-L07 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of M220Z3-L07 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of M220Z3-L07 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods M220Z3-L07 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
