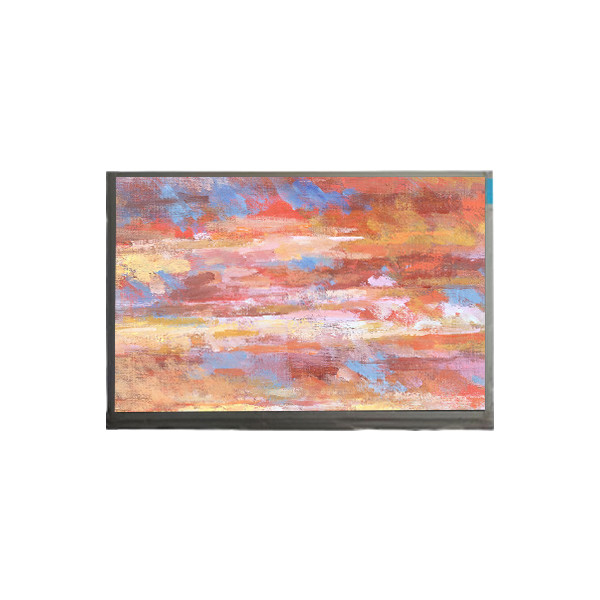

1366*768 M185B3-L01 18.5 inch LVDS 30 pins LCD Screen Panel

Brand Name:	CMO
Model Number:	M185B3-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M185B3-L01

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 84PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

409.8(W)×230.4(H) Mm

Touch Panel:

Without

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

1366*768 M185B3-L01 18.5 inch LVDS 30 pins LCD Screen Panel

M185B3-L01 LCD Panel Product details :

Brand	CMO
Model P/N	M185B3-L01
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Size	430.37(W)×254.6(H)×8.5(D) mm
Brightness	250 cd/m² (Typ.)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Best View on	-
Display Colors	16.7M 68%NTSC
Frequency	60Hz
Weight	1.20/1.25Kgs (Typ./Max.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Lamp Type	11S7P×2CN WLED , 30K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	LVDS (1 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M185B3-L01 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M185B3-L01 LCD Panel Shipping and Package :

M185B3-L01 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M185B3-L01 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M185B3-L01 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of M185B3-L01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of M185B3-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of M185B3-L01 ?

A: Of course!sample order is welcome !
