LCD Screen Display Panel

M170E8-L01 1280*1024 17.0 inch LVDS LCD Screen Module

All Category

Floor Standing Digital Signage

M170E8-L01 1280*1024 17.0 inch LVDS LCD Screen Module

Brand Name:	CMO
Model Number:	M170E8-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M170E8-L01

Diagonal Size:

17.0 Inch

Panel Type:

A-Si TFT-LCD , LCM

Resolution:

1280(RGB)×1024 [SXGA] 96PPI

Pixel Format:

RGB Vertical Stripe

Display Size:

337.92(H)×270.336(V) Mm

Touch Panel:

Without

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

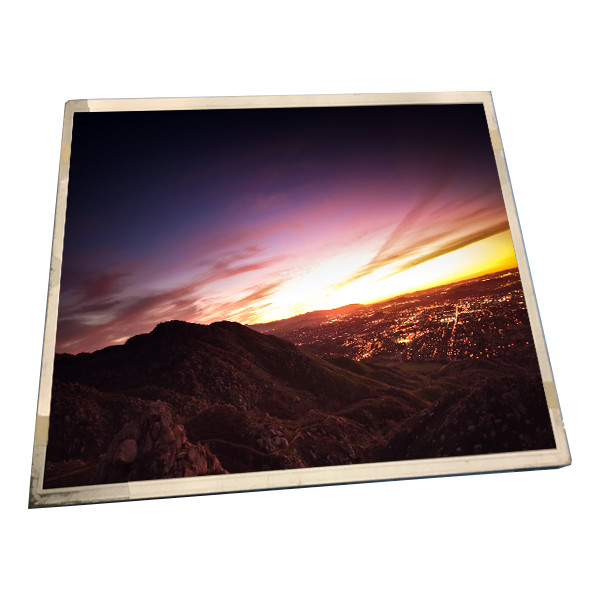

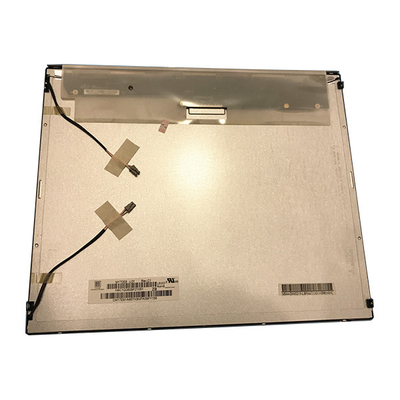

M170E8-L01 1280*1024 17.0 inch LVDS LCD Screen Module

M170E8-L01 LCD Panel Product details :

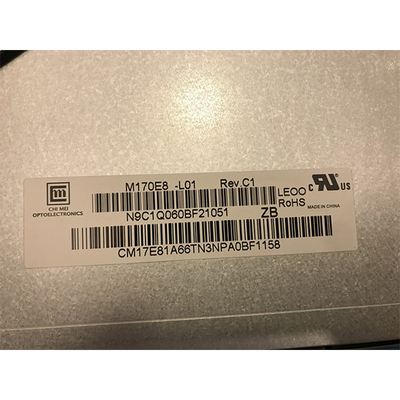

CMO LCD SCREEN M170E8-L01
manufacturer	CMO
Model Name	M170E8-L01
screen size	17.0 inch
Screen type	a-Si TFT-LCD , LCM
Resolution	1280(RGB)×1024 [SXGA] 96PPI
Pixel configuration	RGB Vertical Stripe
Display size	337.92(H)×270.336(V) mm
physical dimension	358.5(H)×296.5(V) ×13.5(D) mm
Visual size	341.9(H)×274.4(V) mm
surface treatment	Antiglare (Haze 25%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast	1000:1 (Typ.) (TM)
Optical mode	TN, Normally White, Transmissive
Viewing angle	85/85/80/80 (Typ.)(CR≥10)
Responding time	1.3/3.7 (Typ.)(Tr/Td)
Number of color	16.7M 72% NTSC

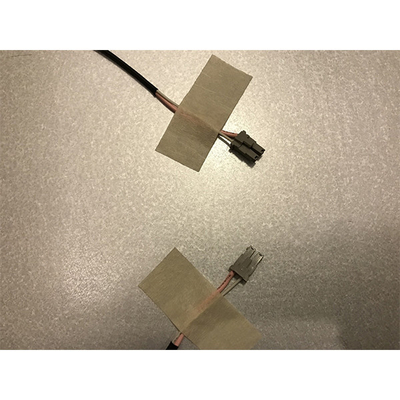

Backlight type	CCFL [2 pcs] , 50K hours , W/O Driver
Weight	1.44/1.49Kgs (Typ./Max.)
Apply to	Desktop Monitor
Refresh rate	60Hz
Touch function	No touch
signal system	LVDS (2 ch, 8-bit) , 30 pins Connector
Supply voltage	5.0V (Typ.)
Maximum rating	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
M170E8-L01 17.0 Inch Industrial Grade TFT LCD Screen Display Panel

M170E8-L01 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M170E8-L01 LCD Panel Shipping and Package :

M170E8-L01 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M170E8-L01 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M170E8-L01 LCD Panel FAQ :

Q: Do you accept sample orders of M170E8-L01 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of M170E8-L01 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of M170E8-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.
