LCD Screen Display Panel

22.0 inch HSD220MKW1-A01 1680*1050 LCD Screen Module

All Category

Floor Standing Digital Signage

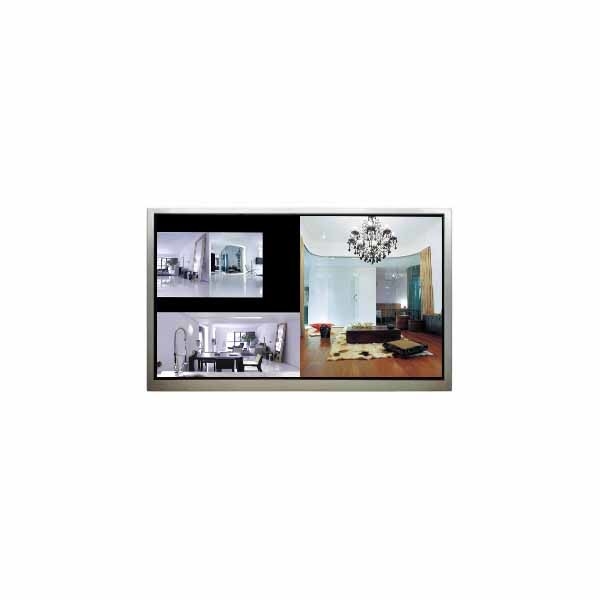

22.0 inch HSD220MKW1-A01 1680*1050 LCD Screen Module

Brand Name:	HannStar
Model Number:	HSD220MKW1-A01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

HSD220MKW1-A01

Diagonal Size:

22.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1680(RGB)×1050, WSXGA+ 90PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

473.76(W)×296.1(H) Mm

Touch Panel:

Without

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

22.0 inch HSD220MKW1-A01 1680*1050 LCD Screen Module

HSD220MKW1-A01 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD220MKW1-A01
Diagonal Size	22.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050, WSXGA+ 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	473.76(W)×296.1(H) mm
Bezel Opening	477.7(W)×300.1(H) mm
Outline Size	493.7(W)×320.1(H)×17(D) mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	1.5/3.5 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 76%NTSC
Backlight	4 pcsCCFL, 40K hours, No Driver
Mass	3.05±0.20Kgs
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

HSD220MKW1-A01 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

HSD220MKW1-A01 LCD Panel Shipping and Package :

HSD220MKW1-A01 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

HSD220MKW1-A01 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

HSD220MKW1-A01 LCD Panel FAQ :

Q: Can you tested the HSD220MKW1-A01 before shipping ?

A: Of course , our lcd panel HSD220MKW1-A01 was Strictly tested before shipping.

Q: How to order HSD220MKW1-A01 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel HSD220MKW1-A01 received can't work ?

A: HSD220MKW1-A01 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
