LCD Touch Panel Display

12.3 inch 1920*720 LA123WFE-SL01 LCD Screen for Automotive Display

All Category

Floor Standing Digital Signage

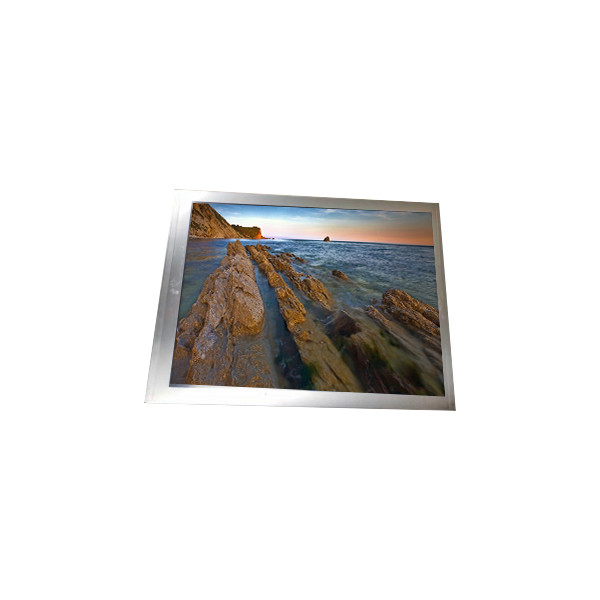

12.3 inch 1920*720 LA123WFE-SL01 LCD Screen for Automotive Display

Brand Name:	LG Display
Model Number:	LA123WFE-SL01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA123WFE-SL01

Diagonal Size:

12.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×720 167PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

292.032(W)×109.512(H) Mm

Response Time:

20 (Max.)(Tr+Td)

Designed For:

Outdoor High Brightness/Automotive Display

Interface Type:

GMSL , 5 Pins Connector

Touch Panel:

In-Cell Touch, I²C

Supply Ability:

100000 Unit/Units per Month

Highlight:

LA123WFE-SL01

LA123WFE-SL01 LCD Screen

12.3 inch LCD Screen

Product Description

12.3 inch 1920*720 LA123WFE-SL01 LCD Screen for Automotive Display

LA123WFE-SL01 LCD Panel Product details :

Brand	LG Display
Model P/N	LA123WFE-SL01
Diagonal Size	12.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 167PPI
Pixel Format	RGB Vertical Stripe
Active Area	292.032(W)×109.512(H) mm
Bezel Opening	-
Outline Dim.	299.04(W)×122.63(H) mm
Treatment	Clear, Hard coating (3H), Reflection 5.5% (Max.)
Luminance	720 cd/m² (Typ.)
Contrast Ratio	1200:1 (Min.) (TM)
View Direction	Symmetry
Response Time	20 (Max.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 71% NTSC
Light Source	WLED , 20K hours , With LED Driver
Weight	365/402g (Typ./Max.)
Designed For	Outdoor High Brightness/Automotive Display
Frame Rate	60Hz
Touch Panel	In-Cell Touch, I²C
Interface Type	GMSL , 5 pins Connector
Power Supply	12.0V (Typ.)(With Backlight)
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)

LA123WFE-SL01 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LA123WFE-SL01 LCD Panel Shipping and Package :

LA123WFE-SL01 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LA123WFE-SL01 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LA123WFE-SL01 LCD Panel FAQ :

Q: How to make payment of LA123WFE-SL01 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of LA123WFE-SL01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LA123WFE-SL01 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods LA123WFE-SL01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
