HT236F01-100 1920*1080 23.6 inch LCD Screen Monitor

Brand Name:	BOE
Model Number:	HT236F01-100
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HT236F01-100

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 93PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

521.28(W)×293.22(H) Mm

Lamp Type:

4 PcsCCFL, 50K Hours, Without Driver

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

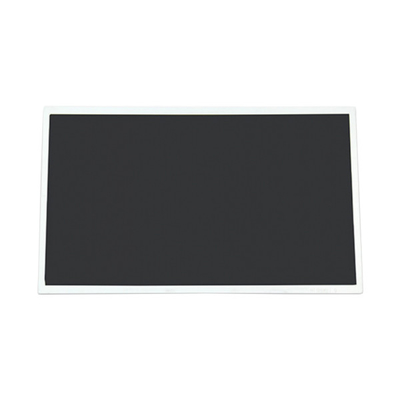

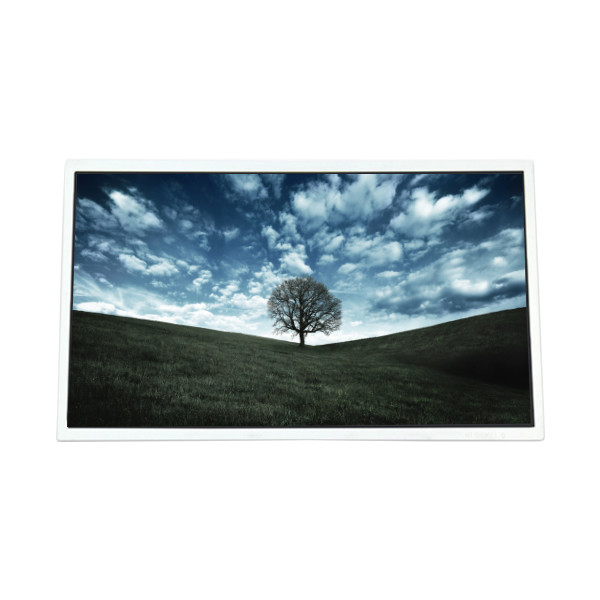

HT236F01-100 1920*1080 23.6 inch LCD Screen Monitor

HT236F01-100 LCD Panel Product details :

Brand	BOE
Model P/N	HT236F01-100
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	525.22(W)×297.22(H) mm
Outline Size	544.8(W)×320.5(H)×19.2(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.90Kgs (Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

HT236F01-100 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

HT236F01-100 LCD Panel Shipping and Package :

HT236F01-100 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

HT236F01-100 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

HT236F01-100 LCD Panel FAQ :

Q: Can I pay my order of HT236F01-100 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of HT236F01-100 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of HT236F01-100 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
