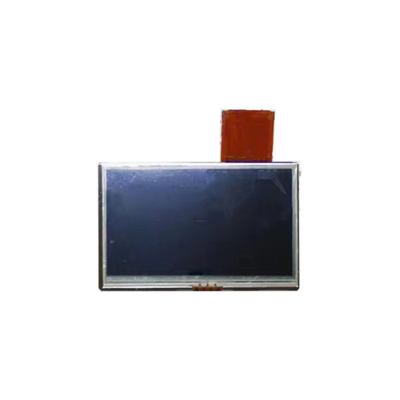

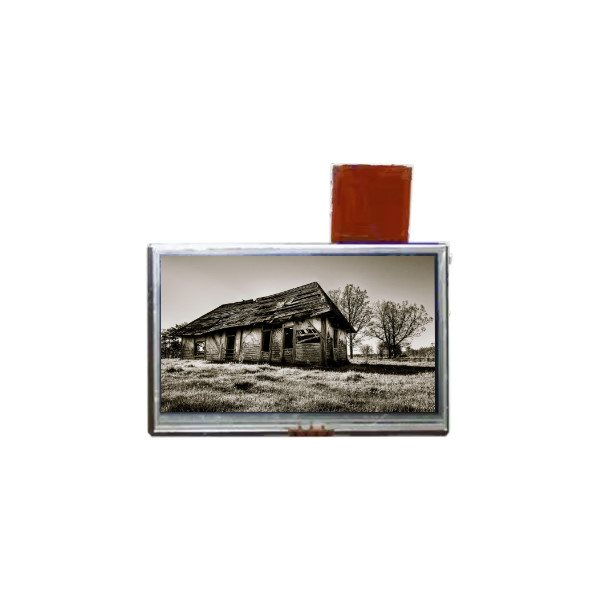

A050VW01 V5 5.0 inch 800*480 TFT LCD Screen Monitor

Brand Name:	AUO
Model Number:	A050VW01 V5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A050VW01 V5

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

800(RGB)×480, WVGA 188PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

108(W)×64.8(H) Mm

Touch Panel:

Without

Designed For:

Portable Navigation、MID UMPC、MP3 PMP、Gaming

Supply Ability:

100000 Unit/Units per Month

Product Description

A050VW01 V5 5.0 inch 800*480 TFT LCD Screen Monitor

A050VW01 V5 LCD Panel Product details :

Brand	AUO
Model P/N	A050VW01 V5
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	800(RGB)×480, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Bezel Opening	-
Outline Size	115.49(W)×73.62(H)×1.43(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	300:1 (Typ.) (TM)
Viewing Angle	60/60/55/45 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	15/20 (Typ.)(Tr/Td)
Glass Depth	0.50+0.50 mm
Transmissivity	-
Display Colors	16.7M 50%NTSC
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Driver IC	COG Built-in 2 source + 1 gate chips
Panel Weight	TBD
Application	Portable Navigation,MID UMPC,MP3 PMP,Gaming
Signal Interface	Parallel RGB (1 ch, 8-bit), 40 pinsFPC
Input Voltage	3.3/9.9V (Typ.)(VDD/AVDD)

A050VW01 V5 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

A050VW01 V5 LCD Panel Shipping and Package :

A050VW01 V5 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

A050VW01 V5 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

A050VW01 V5 LCD Panel FAQ :

Q: Can I pay my order of A050VW01 V5 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of A050VW01 V5 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of A050VW01 V5 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
