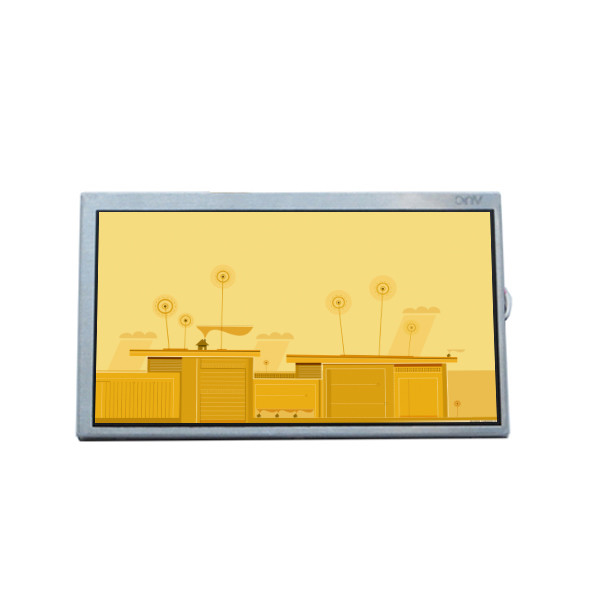

10.1 inch A101SW01 V0 1024*600 LCD Screen Display

All Category

Floor Standing Digital Signage

10.1 inch A101SW01 V0 1024*600 LCD Screen Display

Brand Name:	AUO
Model Number:	A101SW01 V0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A101SW01 V0

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Touch Panel:

Without

Designed For:

Netbook PC、Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

10.1 inch A101SW01 V0 1024*600 LCD Screen Display

A101SW01 V0 LCD Panel Product details :

Brand	AUO
Model P/N	A101SW01 V0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	-
Outline(mm)	230.28 × 133.5× 1.28 (H×V×D)
Treatment	Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	16 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.7% (Typ.)(with Polarizer)
Color Depth	262K 45%NTSC
Backlight	No B/L
Outline Shape	-
Used for	Netbook PC,Digital Photo Frame,Portable DVD Player
Refresh Rate	60Hz
Touchscreen	Without
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

A101SW01 V0 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

A101SW01 V0 LCD Panel Shipping and Package :

A101SW01 V0 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

A101SW01 V0 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

A101SW01 V0 LCD Panel FAQ :

Q: How do you ship my goods A101SW01 V0 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of A101SW01 V0 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel A101SW01 V0 at a very low value ?

A: Yes , we can . pls inform us before shipping .
