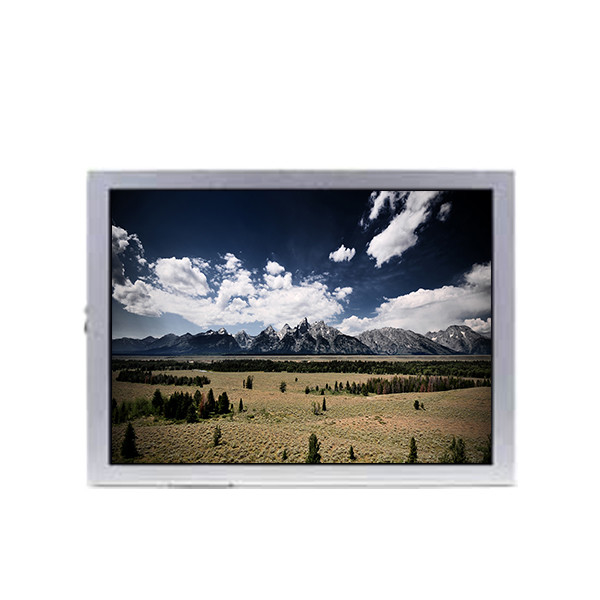

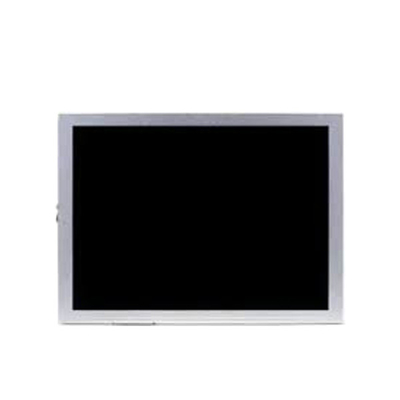

8.0 inch 800*600 A080SN01 V7 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080SN01 V7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A080SN01 V7 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 800(RGB)×600, SVGA 125PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 162(W)×121.5(H) Mm |
| Touch Panel: | Without | Designed For: | Digital Photo Frame、Portable DVD Player |
Product Description
8.0 inch 800*600 A080SN01 V7 LCD Screen Module
A080SN01 V7 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A080SN01 V7 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×600, SVGA 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 162(W)×121.5(H) mm |
| Bezel Opening | - |
| Outline(mm) | 170.1 × 132.3× 1.44 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) |
| Response | 4/16 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 4.0% (Typ.)(with Polarizer) |
| Color Depth | 262K/16.7M 50%NTSC |
| Backlight | No B/L |
| Mass | 65.0g (Typ.) |
| Used for | Digital Photo Frame,Portable DVD Player |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Built-in COG 2 source + 2 gate chips |
| Signal Type | TTL (1 ch, 6/8-bit) + SPI, 60 pinsFPC |
| Voltage Supply | 3.3/11.68/15/-6.75V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
A080SN01 V7 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
A080SN01 V7 LCD Panel Shipping and Package :
A080SN01 V7 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
A080SN01 V7 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
A080SN01 V7 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of A080SN01 V7 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of A080SN01 V7 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of A080SN01 V7 ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
