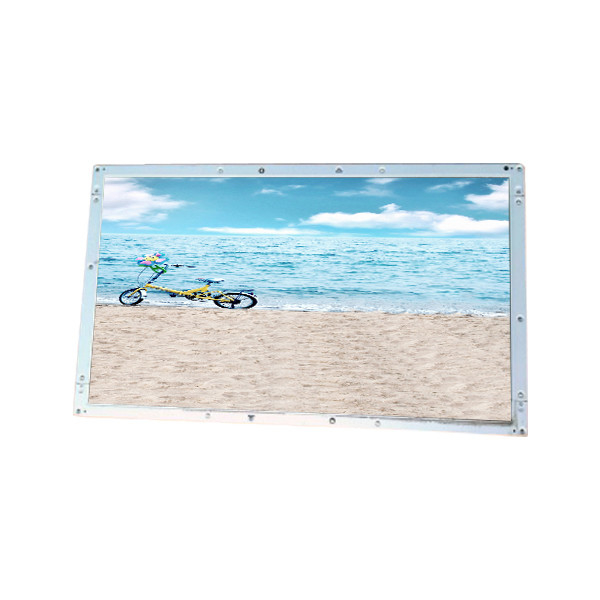

1600*900 15.6 inch B156RW01 V1 HW2A LCD Screen 60Hz LCD Panel

All Category

Floor Standing Digital Signage

1600*900 15.6 inch B156RW01 V1 HW2A LCD Screen 60Hz LCD Panel

Brand Name:	AUO
Model Number:	B156RW01 V1 HW2A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156RW01 V1 HW2A

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×900, HD+ 118PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Touch Panel:

Without

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

1600*900 15.6 inch B156RW01 V1 HW2A LCD Screen 60Hz LCD Panel

B156RW01 V1 HW2A LCD Panel Product details :

Brand	AUO
Model P/N	B156RW01 V1 HW2A
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 118PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	347.2(W)×196.5(H) mm
Outline Dim.	359.3(W)×209.5(H)×5.7(D)
Treatment	Antiglare, Hard coating (3H)
Luminance	220 (Typ.)(cd/m²)
Contrast Ratio	400 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	2/6 (Typ.)(Tr/Td) ms
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 60% NTSC
Light Source	WLED , 10K hours , With LED Driver
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Signal Type	LVDS (2 ch, 6-bit) , 40 pins Connector
Voltage Supply	3.3V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

B156RW01 V1 HW2A Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

B156RW01 V1 HW2A LCD Panel Shipping and Package :

B156RW01 V1 HW2A Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

B156RW01 V1 HW2A About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

B156RW01 V1 HW2A LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of B156RW01 V1 HW2A ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of B156RW01 V1 HW2A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of B156RW01 V1 HW2A ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
