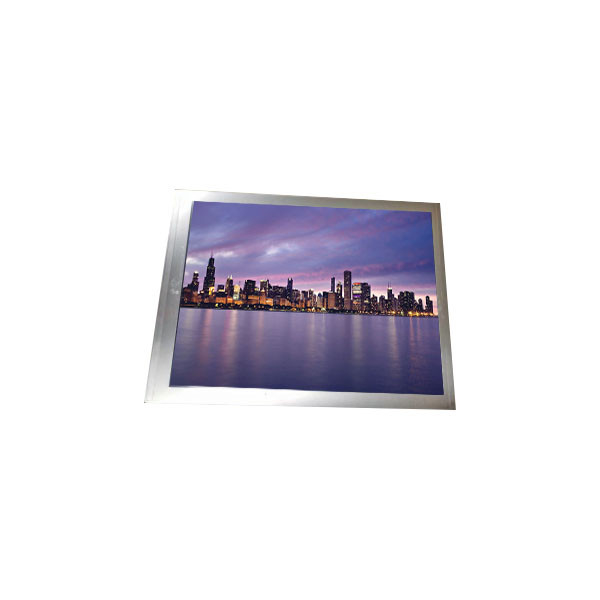

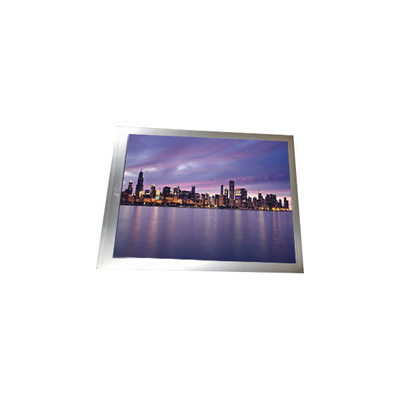

N133JCN-EE1 13.3 inch 1920*1200 LCD Screen for Laptop

All Category

Floor Standing Digital Signage

N133JCN-EE1 13.3 inch 1920*1200 LCD Screen for Laptop

Brand Name:	Chimei Innolux
Model Number:	N133JCN-EE1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N133JCN-EE1

Diagonal Size:

13.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 170PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

286.04(W)×178.78(H) Mm

Outline Dim.:

291.74(H)×189.53(V) ×5(D) Mm

Designed For:

Laptop

Form Style:

Slim (PCBA Bent, T≤3.0mm)

Light Source:

WLED , 15K Hours , With LED Driver

Supply Ability:

100000 Unit/Units per Month

Highlight:

N133JCN-EE1

N133JCN-EE1 LCD Screen

13.3 inch LCD Screen

Product Description

N133JCN-EE1 13.3 inch 1920*1200 LCD Screen for Laptop

N133JCN-EE1 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	N133JCN-EE1
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	286.04(W)×178.78(H) mm
Bezel Opening	-
Outline Dim.	291.74(H)×189.53(V) ×5(D) mm
Treatment	-
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	11/9 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	16.7M 45% NTSC
Light Source	WLED , 15K hours , With LED Driver
Form Style	Slim (PCBA Bent, T≤3.0mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch
Interface Type	eDP (2 Lanes) , eDP1.4 Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

N133JCN-EE1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

N133JCN-EE1 LCD Panel Shipping and Package :

N133JCN-EE1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

N133JCN-EE1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

N133JCN-EE1 LCD Panel FAQ :

Q: How long is the warranty of N133JCN-EE1 ?

A: 90days warranty .

Q: How can I trace my order of N133JCN-EE1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods N133JCN-EE1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for N133JCN-EE1 ?

A: Of course!sample order is welcome !
