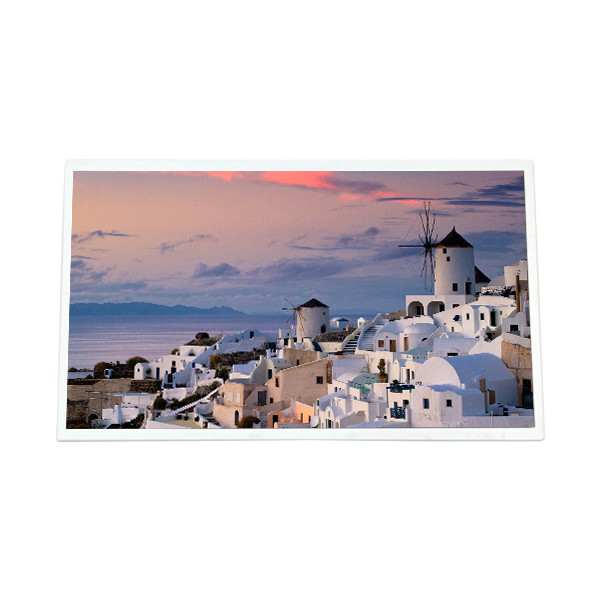

19.0 inch M190PW01 V0 (0H 0J) 1440*900 LVDS LCD Screen Monitor

Brand Name:	AUO
Model Number:	M190PW01 V0 (0H 0J)
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M190PW01 V0 (0H 0J)

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×255.15(H) Mm

Touch Panel:

Without

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

19.0 inch M190PW01 V0 (0H 0J) 1440*900 LVDS LCD Screen Monitor

M190PW01 V0 (0H 0J) LCD Panel Product details :

Brand	AUO
Model P/N	M190PW01 V0 (0H 0J)
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×255.15(H) mm
Bezel Opening	412.24(W)×259.15(H) mm
Outline Dim.	428(W)×278(H) ×16.9(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	-
Response Time	3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	4 pcs CCFL , 50K hours , Without Driver
Weight	1.90Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M190PW01 V0 (0H 0J) Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M190PW01 V0 (0H 0J) LCD Panel Shipping and Package :

M190PW01 V0 (0H 0J) Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M190PW01 V0 (0H 0J) About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M190PW01 V0 (0H 0J) LCD Panel FAQ :

Q: Can You declare my order of M190PW01 V0 (0H 0J) to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of M190PW01 V0 (0H 0J) ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of M190PW01 V0 (0H 0J) ?

A: Of course!sample order is welcome !

Q: Can I pay my order of M190PW01 V0 (0H 0J) via credit card ?

A: Yes!you can use your credit card through your Paypal account.
