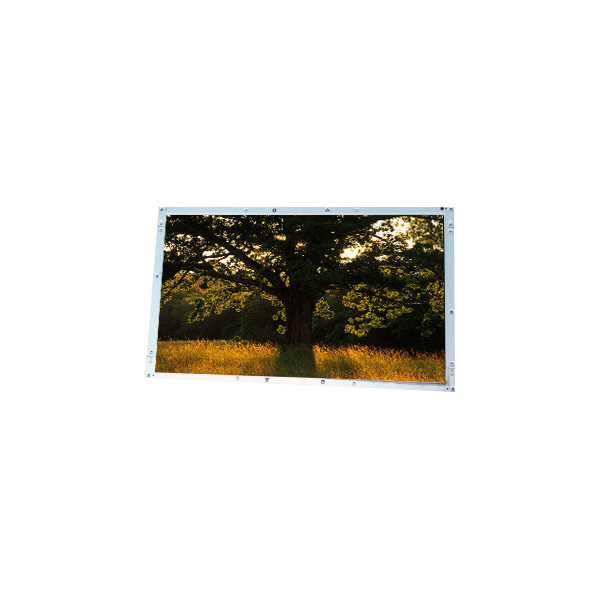

A101SW01 V2 10.1 inch 1024*600 LCD Screen Display

Brand Name:	AUO
Model Number:	A101SW01 V2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A101SW01 V2

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Touch Panel:

Without

Designed For:

Netbook PC、Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

A101SW01 V2 10.1 inch 1024*600 LCD Screen Display

A101SW01 V2 LCD Panel Product details :

Brand	AUO
Model P/N	A101SW01 V2
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	-
Outline Dim.	230.28(H)×133.5(V)×1.28(D) mm
Treatment	Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	16 (Typ.)(Tr+Td)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.7% (Typ.)(with Polarizer)
Support Color	262K 45%NTSC
Light Source	No B/L
Form Style	-
Designed For	Netbook PC,Digital Photo Frame,Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 2 source + 2 gate chips
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

A101SW01 V2 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

A101SW01 V2 LCD Panel Shipping and Package :

A101SW01 V2 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

A101SW01 V2 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

A101SW01 V2 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of A101SW01 V2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of A101SW01 V2 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of A101SW01 V2 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
