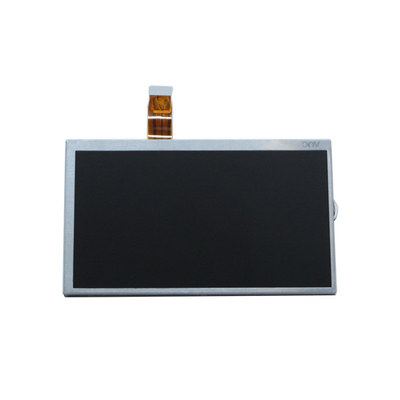

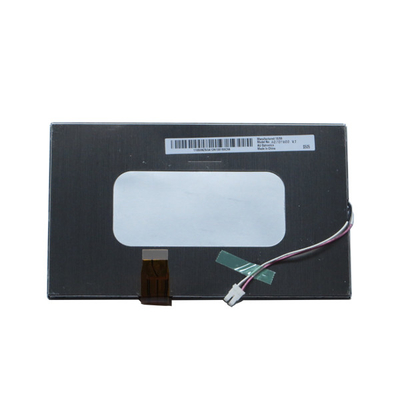

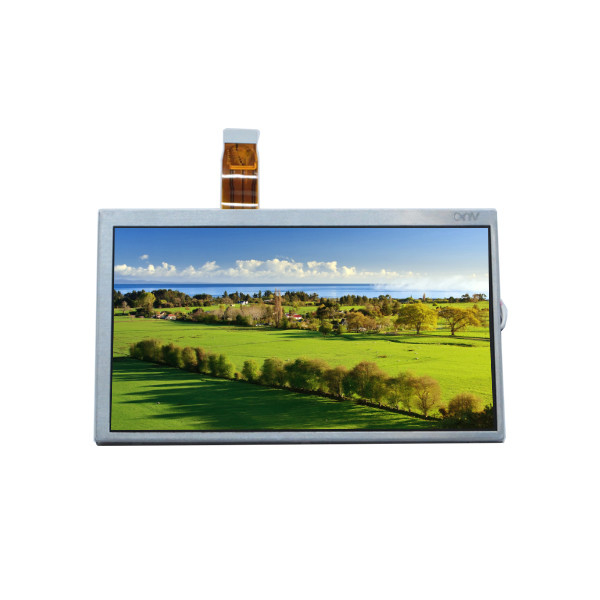

7.0 inch A070FW00 V7 480*234 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070FW00 V7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A070FW00 V7 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 480(RGB)×234 76PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×86.58(H) Mm |
| Touch Panel: | Without | Designed For: | Digital Photo Frame、Portable DVD Player |
| Input Voltage: | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Signal Interface: | TFT Specific Analog RGB, 26 PinsFPC |
Product Description
7.0 inch A070FW00 V7 480*234 LCD Screen Panel
A070FW00 V7 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A070FW00 V7 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×86.58(H) mm |
| Bezel Opening | - |
| Outline Size | 162.53(W)×96.62(H)×1.43(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | Full color 47%NTSC |
| Frequency | 60Hz |
| Weight | 46.0g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Transmissivity | 7.16% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Digital Photo Frame,Portable DVD Player |
| Driver IC | COGBuilt-in 3 source + 1 gate chips |
| Signal Interface | TFT Specific Analog RGB, 26 pinsFPC |
| Input Voltage | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C |
A070FW00 V7 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
A070FW00 V7 LCD Panel Shipping and Package :
A070FW00 V7 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
A070FW00 V7 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
A070FW00 V7 LCD Panel FAQ :
Q: How do you ship my goods A070FW00 V7 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen A070FW00 V7 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of A070FW00 V7 ?
A: 90 days warranty .
