LCD Screen Display Panel

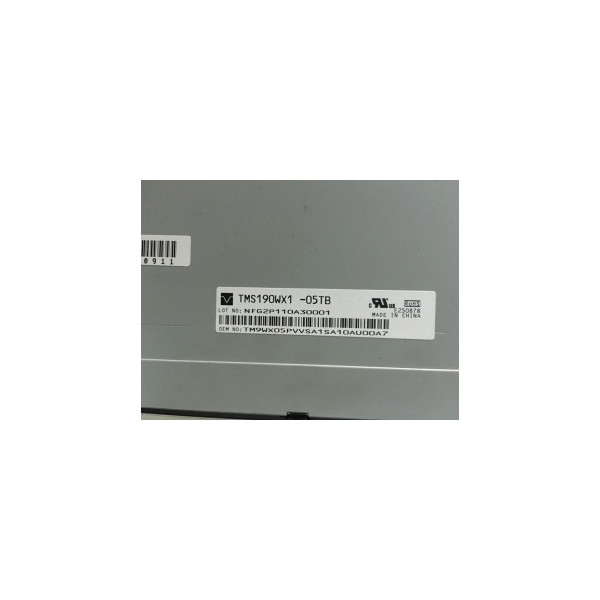

1440*900 TMS190WX1-05TB 19.0 inch LCD Screen Monitor

All Category

Floor Standing Digital Signage

1440*900 TMS190WX1-05TB 19.0 inch LCD Screen Monitor

Brand Name:	AVIC
Model Number:	TMS190WX1-05TB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TMS190WX1-05TB

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×255.15(H) Mm

Touch Panel:

Without

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

1440*900 TMS190WX1-05TB 19.0 inch LCD Screen Monitor

TMS190WX1-05TB LCD Panel Product details :

Brand	AVIC
Model P/N	TMS190WX1-05TB
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×255.15(H) mm
Bezel Opening	412.2(W)×259.1(H) mm
Outline(mm)	428 × 278× 17 (H×V×D)
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Response	1.3/3.7 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	4 pcsCCFL, No Driver
Mass	2.15Kgs (Typ.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C

TMS190WX1-05TB Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

TMS190WX1-05TB LCD Panel Shipping and Package :

TMS190WX1-05TB Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

TMS190WX1-05TB About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

TMS190WX1-05TB LCD Panel FAQ :

Q: How do you ship my goods TMS190WX1-05TB ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of TMS190WX1-05TB ?

A: 90 days warranty .

Q: How can I trace my order of TMS190WX1-05TB ?

A: we will give you tracking number then you can trace your order form website.

Q: Can you give me a discount if I need a large quantity of TMS190WX1-05TB ?

A: Of course!If you make a large order, we will give you a discount.
