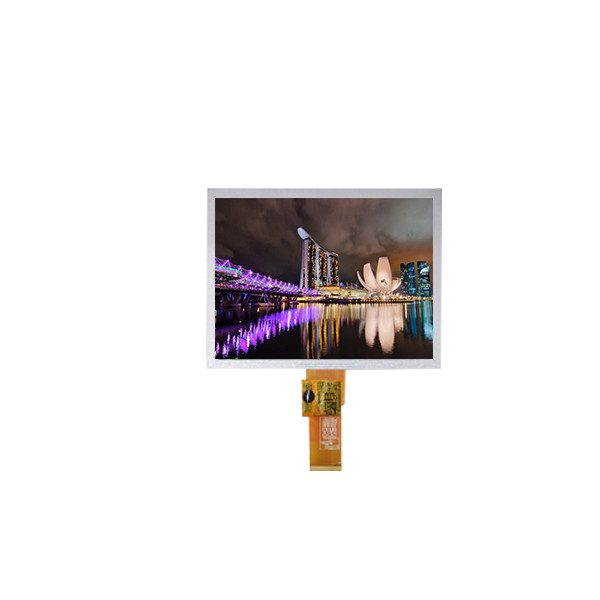

TMS150XG1-12TB 15.0 inch 1024*768 LCD Screen Monitor

Brand Name:	AVIC
Model Number:	TMS150XG1-12TB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TMS150XG1-12TB

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 85PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

304.128(W)×228.096(H) Mm

Color Depth:

16.7M 60%NTSC

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

TMS150XG1-12TB 15.0 inch 1024*768 LCD Screen Monitor

TMS150XG1-12TB LCD Panel Product details :

Brand	AVIC
Model P/N	TMS150XG1-12TB
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	307.4(W)×231.3(H) mm
Outline(mm)	326.5 × 253.5× 12 (H×V×D)
Treatment	-
Luminance	350 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	2/6 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 60%NTSC
Backlight	2 pcsCCFL, No Driver
Mass	1.00Kgs (Typ.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 55 °C

TMS150XG1-12TB Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

TMS150XG1-12TB LCD Panel Shipping and Package :

TMS150XG1-12TB Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

TMS150XG1-12TB About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

TMS150XG1-12TB LCD Panel FAQ :

Q: How can I trace my order of TMS150XG1-12TB ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of TMS150XG1-12TB ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of TMS150XG1-12TB ?

A: Of course!sample order is welcome !

Q: Can I pay my order of TMS150XG1-12TB via credit card ?

A: Yes!you can use your credit card through your Paypal account.
