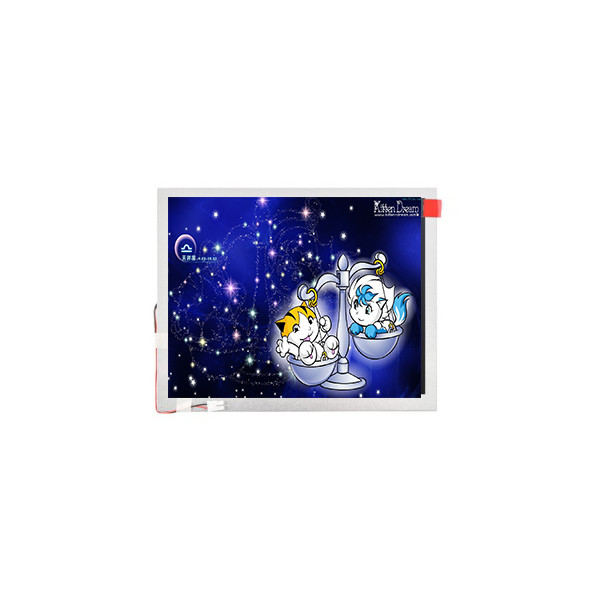

10.4 inch 1024*768 TM104TFH01 LCD Screen Display

Brand Name:	TIANMA
Model Number:	TM104TFH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM104TFH01

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

1024(RGB)×768, XGA 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

210.4(W)×157.8(H) Mm

Color Depth:

262K 60%NTSC

Designed For:

Digital Photo Frame

Supply Ability:

100000 Unit/Units per Month

Product Description

10.4 inch 1024*768 TM104TFH01 LCD Screen Display

TM104TFH01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM104TFH01
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	210.4(W)×157.8(H) mm
Bezel Opening	-
Outline(mm)	220.5 × 168× 1.43 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Response	16/21 (Typ.)(Tr/Td) ms
Good View at	9 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	-
Color Depth	262K 60%NTSC
Backlight	No B/L
Mass	TBD
Used for	Digital Photo Frame
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	RSDS (1 Channel), 100 pins FPC
Voltage Supply	3.3/10.8/20.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE)
Max. Ratings	Storage Temp.: -55 ~ 90 °C Operating Temp.: -40 ~ 85 °C

TM104TFH01 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

TM104TFH01 LCD Panel Shipping and Package :

TM104TFH01 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

TM104TFH01 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

TM104TFH01 LCD Panel FAQ :

Q: Do you accept sample orders of TM104TFH01 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of TM104TFH01 vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of TM104TFH01 ?

A: The order will be shipped within 2-3 working days after received your payment.
