LCD Screen Display Panel

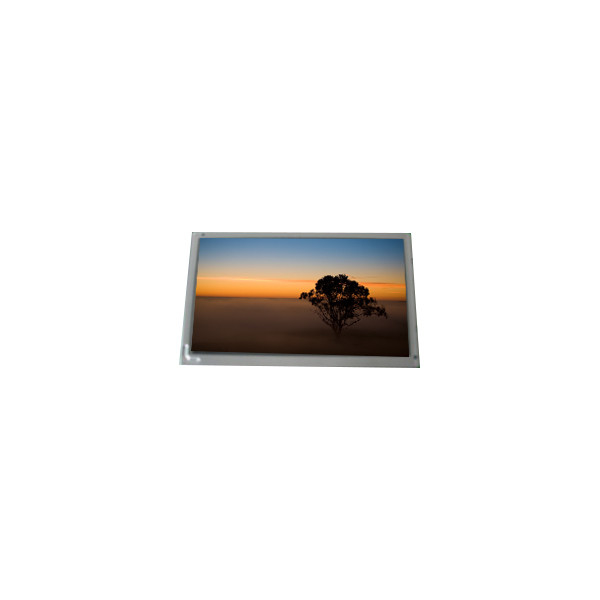

in stock M156BGE-L01 15.6 inch 1366*768 LCD Screen panel

All Category

Floor Standing Digital Signage

in stock M156BGE-L01 15.6 inch 1366*768 LCD Screen panel

Brand Name:	Chimei Innolux
Model Number:	M156BGE-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M156BGE-L01

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Luminance:

250 Cd/m² (Typ.)

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

in stock M156BGE-L01 15.6 inch 1366*768 LCD Screen panel

M156BGE-L01 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	M156BGE-L01
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	347.53(W)×196.84(H) mm
Outline Dim.	363.8(W)×215.9(H)×11.5(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	2/6 (Typ.)(Tr/Td) ms
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissiv
Support Color	16.7M 65% NTSC
Light Source	12S8P WLED , 30K hours , No Driver
Mass	1.06/1.08Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	75Hz
Touch Panel	Without
D-IC Detail	LVDS (1 ch, 8-bit) , 30 pins Connector
Voltage Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M156BGE-L01 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M156BGE-L01 LCD Panel Shipping and Package :

M156BGE-L01 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M156BGE-L01 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M156BGE-L01 LCD Panel FAQ :

Q: How can I trace my order of M156BGE-L01 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of M156BGE-L01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of M156BGE-L01 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of M156BGE-L01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
