LCD Screen Display Panel

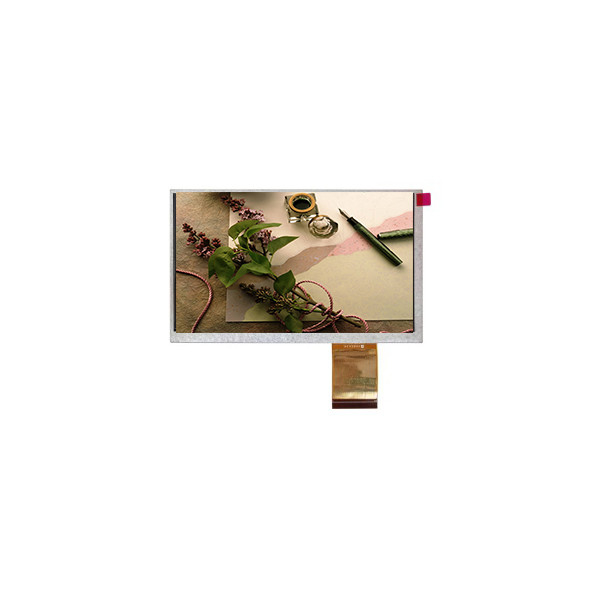

TM070UDH06 7.0 inch 480*234 LCD Screen TFT LCD Panel

All Category

Floor Standing Digital Signage

TM070UDH06 7.0 inch 480*234 LCD Screen TFT LCD Panel

Brand Name:	TIANMA
Model Number:	TM070UDH06
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM070UDH06

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×234 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×86.58(H) Mm

Touch Panel:

Without

Designed For:

Digital Photo Frame、Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

TM070UDH06 7.0 inch 480*234 LCD Screen TFT LCD Panel

TM070UDH06 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM070UDH06
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×234 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×86.58(H) mm
Bezel Opening	156.5(W)×89.0(H) mm
Outline Dim.	164.9(H)×100(V)×6(D) mm
Treatment	Antiglare
Luminance	200 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	65/65/45/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color 50%NTSC
Light Source	WLED [2S9P], 20K hours, W/O Driver
Weight	158g
Designed For	Digital Photo Frame,Portable DVD Player
Frame Rate	-
Touch Panel	Without
Interface Type	TFT Specific Analog RGB, 26 pinsFPC
Power Supply	5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

TM070UDH06 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

TM070UDH06 LCD Panel Shipping and Package :

TM070UDH06 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

TM070UDH06 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

TM070UDH06 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of TM070UDH06 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of TM070UDH06 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my order of TM070UDH06 ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty .
