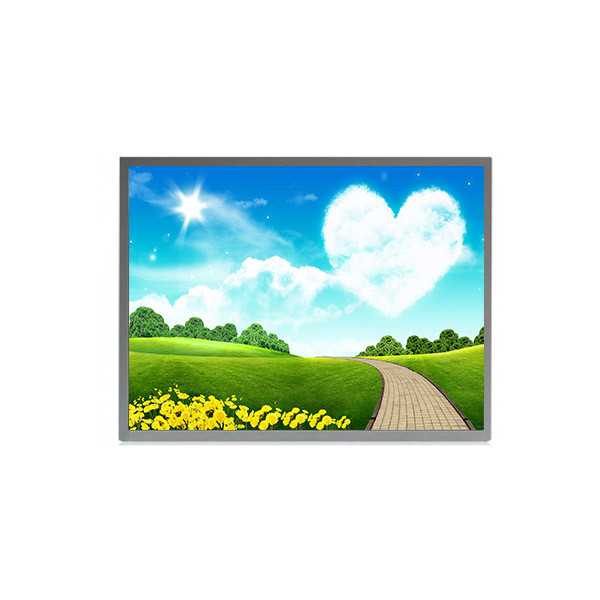

TMS156WX1-04TB 1366*768 Size 15.6 inch Luminance 250 cd/m2 lcd screen

Brand Name:	AVIC
Model Number:	TMS156WX1-04TB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TMS156WX1-04TB

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Power Supply:

5.0V (Typ.)

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

TMS156WX1-04TB 1366*768 Size 15.6 inch Luminance 250 cd/m2 lcd screen

TMS156WX1-04TB LCD Panel Product details :

Brand	AVIC
Model P/N	TMS156WX1-04TB
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	-
Outline Size	363.8(W)×215.9(H)×14.8(D) mm
Surface	Antiglare
Brightness	250 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	2/6 (Typ.)(Tr/Td)
Display Colors	16.7M 60%NTSC
Lamp Type	2 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.30Kgs (Max.)
Application	Desktop Monitor
Signal Interface	LVDS (1 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

TMS156WX1-04TB LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

TMS156WX1-04TB LCD Panel Shipping and Package :

TMS156WX1-04TB LCD Panel Shipping Information :

Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.

Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.

Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.

TMS156WX1-04TB LCD Panel Return Note :

Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.

Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.

TMS156WX1-04TB LCD Panel FAQ :

Q: Do you accept sample orders of TMS156WX1-04TB ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of TMS156WX1-04TB vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of TMS156WX1-04TB ?

A: The order will be shipped within 2-3 working days after received your payment.
