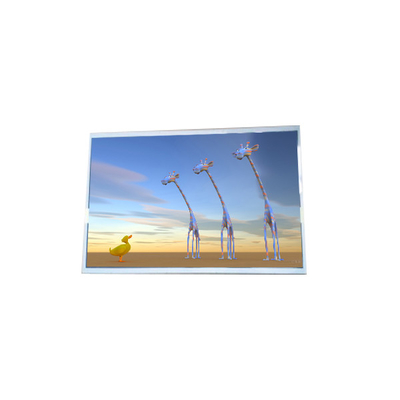

LM220WE1-TLP3 Diagonal Size 22.0 inch 1680*1050 lcd screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM220WE1-TLP3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM220WE1-TLP3 | Diagonal Size: | 22.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 473.76(W)×296.1(H) Mm |
| Frame Rate: | 60Hz | Designed For: | Desktop Monitor |
Product Description
LM220WE1-TLP3 Diagonal Size 22.0 inch 1680*1050 lcd screen panel
LM220WE1-TLP3 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM220WE1-TLP3 |
| Diagonal Size | 22.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Dim. | 493.7(H)×320.1(V)×15(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/75/85 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
| Weight | 2.70/2.84Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LM220WE1-TLP3 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LM220WE1-TLP3 LCD Panel Shipping and Package :
LM220WE1-TLP3 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LM220WE1-TLP3 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LM220WE1-TLP3 LCD Panel FAQ :
Q: How long is the warranty of LM220WE1-TLP3 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LM220WE1-TLP3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LM220WE1-TLP3 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LM220WE1-TLP3 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
