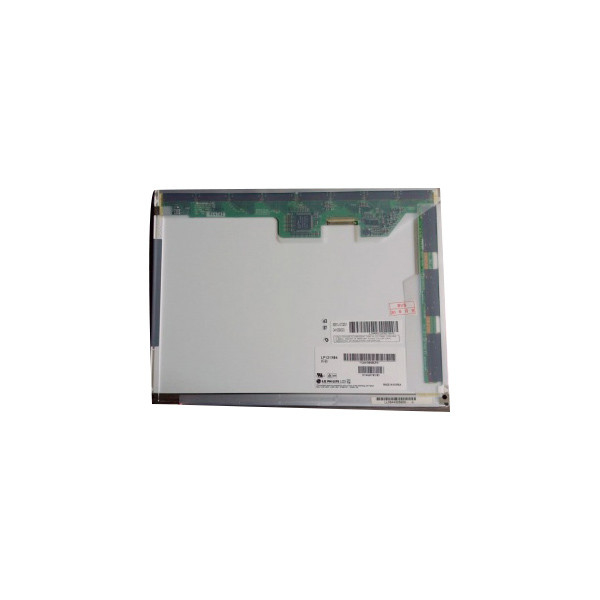

LP121X04-C2 12.1 inch 1024*768 TFT LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP121X04-C2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP121X04-C2 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 245.76(W)×184.32(H) Mm | Operating Mode: | TN, Normally White, Transmissive |
| Support Color: | 262K 42%NTSC | Backlight: | 1 PcsCCFL, 10K Hours, Without Driver |
| Used For: | Laptop | Frame Rate: | 60Hz |
Product Description
LP121X04-C2 12.1 inch 1024*768 TFT LCD Display Module
LP121X04-C2 LCD Panel Product details :
| Brand | LG |
| Model P/N | LP121X04-C2 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 250.6(W)×189.2(H) mm |
| Outline Size | 261(W)×199(H)×5.4(D) mm |
| Surface | Antiglare (Haze 13%), Hard coating (3H) |
| Brightness | 143 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| Viewing Angle | 40/40/15/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20/3012.1 (Typ.)(Tr/Td) |
| Display Colors | 262K 42%NTSC |
| Lamp Type | 1 pcsCCFL, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | - |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LP121X04-C2 12.1 inch 1024*768 TFT LCD Display Module | |
LP121X04-C2 LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LP121X04-C2 LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LP121X04-C2 LCD Panel Shipping and Package :
LP121X04-C2 LCD Panel FAQ :
Q: How long is the warranty of LP121X04-C2 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LP121X04-C2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order LP121X04-C2 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for LP121X04-C2 ?
A: Of course!sample order is welcome !
