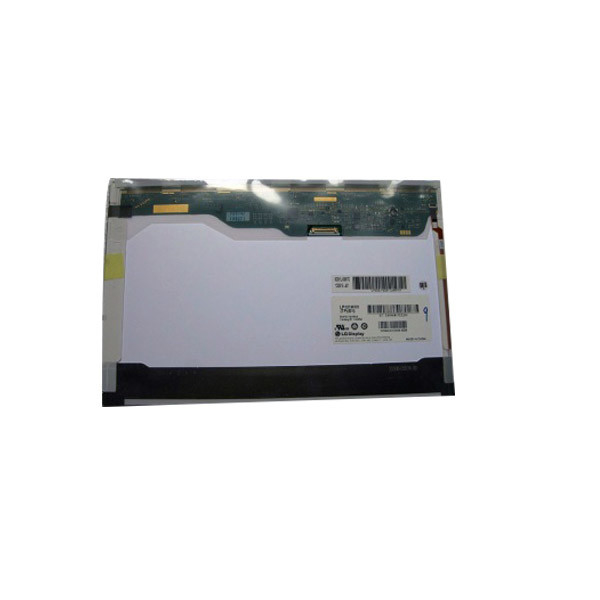

LP121WX3-TPB1 12.1 inch LCD panel 1280*800 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP121WX3-TPB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP121WX3-TPB1 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 261.12(W)×163.2(H) Mm | Operating Mode: | TN, Normally White, Transmissive |
| Support Color: | 262K 45% NTSC | Backlight: | WLED, 12K Hours , With LED Driver |
| Used For: | Laptop | Frame Rate: | 60Hz |
Product Description
LP121WX3-TPB1 12.1 inch LCD panel 1280*800 LCD Screen
LP121WX3-TPB1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP121WX3-TPB1 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 266.5(W)×166.6(H) mm |
| Outline Dim. | 275.8(W)×178.1(H)×5.5(D) mm |
| Luminance | 200 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 40/40/10/30 (Typ.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Form Style | - |
| Frame Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Response Time | 16 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED, 12K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane), eDP1.1, HBR1 (2.7G/lane)30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| LP121WX3-TPB1 12.1 inch LCD panel 1280*800 LCD Screen | |
LP121WX3-TPB1 LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LP121WX3-TPB1 LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LP121WX3-TPB1 LCD Panel Shipping and Package :
LP121WX3-TPB1 LCD Panel FAQ :
Q: Can You declare my order of LP121WX3-TPB1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LP121WX3-TPB1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LP121WX3-TPB1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LP121WX3-TPB1 ?
A: We accept T/T , Paypal , western union .
