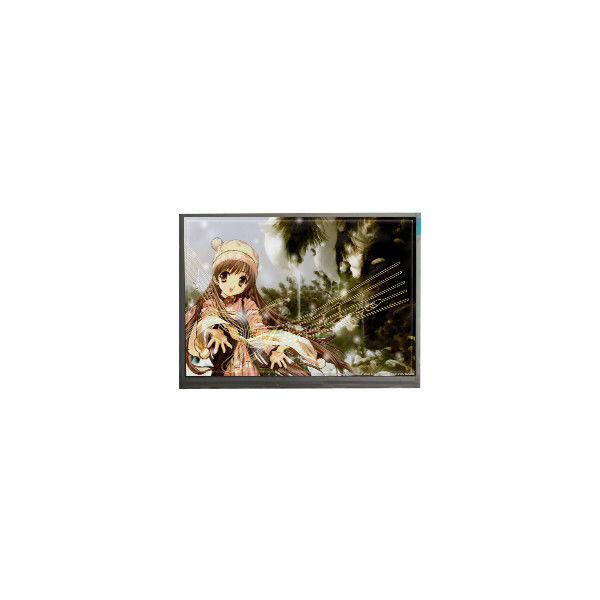

Diagonal Size 13.3 inch N133BGE-M41-U3 1366*768 lcd Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | N133BGE-M41-U3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N133BGE-M41-U3 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 293.42(W)×164.97(H) Mm |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Used For: | Laptop |
| Interface Type: | LVDS (1 Ch, 6-bit) , 40 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description
Diagonal Size 13.3 inch N133BGE-M41-U3 1366*768 lcd Screen display
N133BGE-M41-U3 LCD Panel Product details :
| Brand | Chimei Innolux |
| Model P/N | N133BGE-M41-U3 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | - |
| Outline Dim. | 323.3(H)×215.39(V) ×16.33(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 262K |
| Light Source | WLED , 12K hours , With LED Driver |
| Shape Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
N133BGE-M41-U3 LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding N133BGE-M41-U3 LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
N133BGE-M41-U3 LCD Panel Shipping and Package :
N133BGE-M41-U3 LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
N133BGE-M41-U3 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods N133BGE-M41-U3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity N133BGE-M41-U3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods N133BGE-M41-U3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment N133BGE-M41-U3 ?
A: We accept T/T , Paypal , western union .
