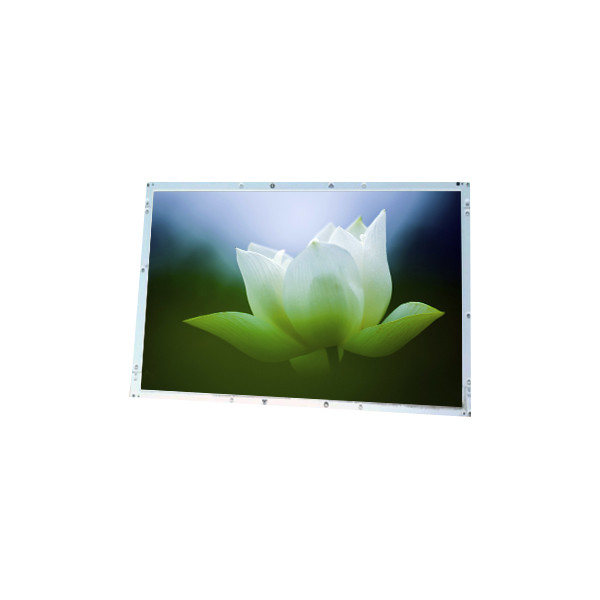

LJ64HM01 640*128 14.4 inch lcd screen module 240Hz lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LJ64HM01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LJ64HM01 | Diagonal Size: | 14.4" |
|---|---|---|---|
| Panel Type: | EL, EL | Resolution: | 640×128 45PPI |
| Pixel Format: | Rectangle | Active Area: | 358.3(W)×71.6(H) Mm |
| Brightness: | 220 Cd/m² (Typ.) | Used For: | Industrial |
Product Description
LJ64HM01 640*128 14.4 inch lcd screen module 240Hz lcd display
LJ64HM01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LJ64HM01 |
| Diagonal Size | 14.4" |
| Panel Type | EL, EL |
| Resolution | 640×128 45PPI |
| Pixel Format | Rectangle |
| Active Area | 358.3(W)×71.6(H) mm |
| Bezel Opening | - |
| Outline Size | 400(W)×107(H)×20(D) mm |
| Surface | - |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | - |
| Response Time | - |
| Display Colors | Monochrome |
| Lamp Type | self |
| Frequency | 240Hz |
| Touch Screen | Without |
| Panel Weight | 740g |
| Application | Industrial |
| Signal Interface | Parallel Data (1ch, 4-bit), 20 pins Connector |
| Input Voltage | 5.0/12V (Typ.)(VL/VD) |
| Environment | Operating Temp.: -20 ~ 65 °C ;Storage Temp.: -40 ~ 85 °C |
| LJ64HM01 640*128 14.4 inch lcd screen module 240Hz lcd display | |
LJ64HM01 LCD Panel Shipping and Package :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LJ64HM01 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LJ64HM01 ship?
A: The order are shipped within 1-2 working days after received the payment.
