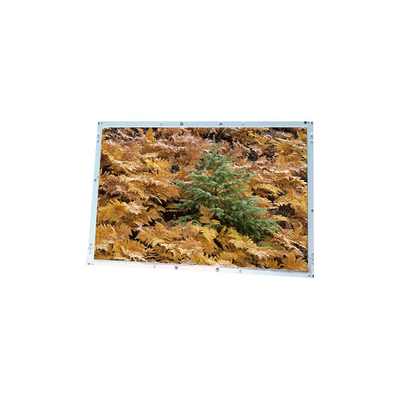

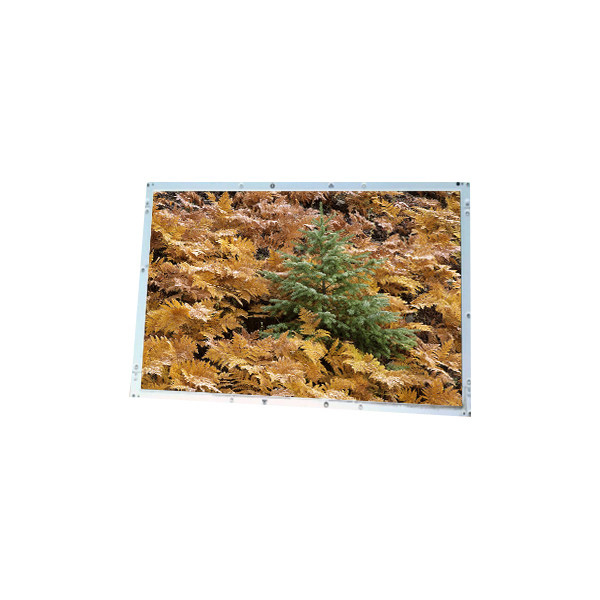

LJ064B1SX01 6.4 inch Resolution 1080*2340 lcd screen LCD panel FOR Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LJ064B1SX01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LJ064B1SX01 | Diagonal Size: | 6.4" |
|---|---|---|---|
| Panel Type: | AM-OLED, Assembly, Full Module | Resolution: | 1080(RG/BG)×2340 329PPI |
| Pixel Format: | RG/BG PenTile | Active Area: | 68.04(W)×147.42(H) Mm |
| Frame Rate: | 120Hz | Used For: | Mobile Phone |
Product Description
LJ064B1SX01 6.4 inch Resolution1080*2340 lcd screen LCD panel FOR Mobile Phone
LJ064B1SX01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LJ064B1SX01 |
| Diagonal Size | 6.4" |
| Panel Type | AM-OLED, Assembly, Full Module |
| Resolution | 1080(RG/BG)×2340 329PPI |
| Pixel Format | RG/BG PenTile |
| Active Area | 68.04(W)×147.42(H) mm |
| Bezel Opening | - |
| Outline Dim. | 72.44(H)×161.82(V) mm |
| Treatment | Hard coating (7H) |
| Luminance | 360 cd/m² (Typ.) |
| Contrast Ratio | 1000000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 16.7M |
| Light Source | self |
| Weight | 28.5g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 120Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | MIPI (2 ch, 4 data lanes), 60 pinsConnector |
| Power Supply | 1.8/3.3/7.9/4.6/-3.5V (Typ.)(IOVCC/VCC/VSP/ELVDD/ELVSS) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| LJ064B1SX01 6.4 inch Resolution1080*2340 lcd screen LCD panel FOR Mobile Phone | |
LJ064B1SX01 LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding LJ064B1SX01 LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
LJ064B1SX01 LCD Panel Shipping and Package :
LJ064B1SX01 LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
LJ064B1SX01 LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order LJ064B1SX01 now?
A: The order are shipped within 1-2 working days after received the payment.
