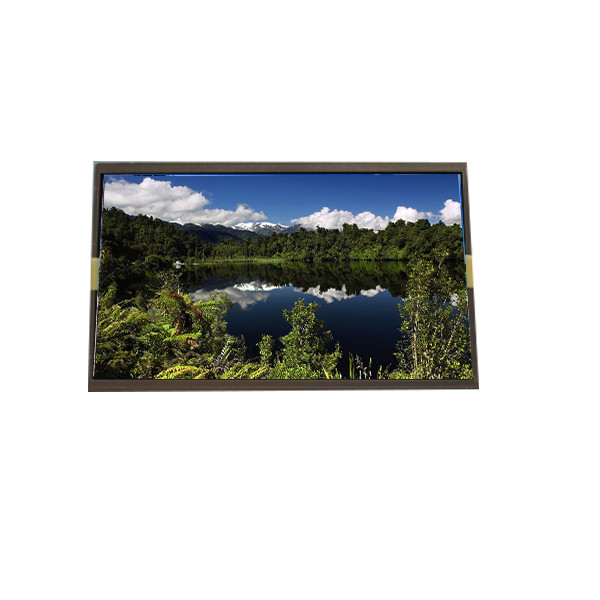

Original LP121SA-A2 12.1 inch LCD Panel 800*600 LCD Display

Brand Name:	LG
Model Number:	LP121SA-A2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP121SA-A2

Diagonal Size:

12.1"

Resolution:

800(RGB)×600, SVGA 82PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

246(W)×184.5(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

262K 42%NTSC

Backlight:

1 Pcs CCFL, Without Driver

Used For:

Laptop

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

Original LP121SA-A2 12.1 inch LCD Panel 800*600 LCD Display

LP121SA-A2 LCD Panel Product details :

Brand	LG Electronics
Model P/N	LP121SA-A2
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	250.0(W)×188.5(H) mm
Outline Size	275(W)×199(H)×5.5(D) mm
Brightness	100 cd/m² (Typ.)
Viewing Angle	45/45/10/30 (Max.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 42%NTSC
Frequency	60Hz
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Surface	Antiglare, Hard coating (2H)
Contrast Ratio	105:1 (Min.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	20/35 (Typ.)(Tr/Td)
Lamp Type	1 pcs CCFL, Without Driver
Touch Screen	Without
Application	Laptop
Signal Interface	LVDS (1 ch, 6-bit), 20 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
Original LP121SA-A2 12.1 inch LCD Panel 800*600 LCD Display

LP121SA-A2 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LP121SA-A2 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LP121SA-A2 LCD Panel Shipping and Package :

LP121SA-A2 LCD Panel FAQ :

Q: How to order lcd panel LP121SA-A2 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will my order 12.1 inch lcd panel LP121SA-A2 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 12.1 inch lcd panel LP121SA-A2 before shipping?

A: Don't Worry , Our LG LP121SA-A2 was tested ok before shipping

Q: What happen if LG LP121SA-A2 I received can't work ?

A: Our LG lcd LP121SA-A2 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

LP121SA-A2 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
