LCD Laptop Screen

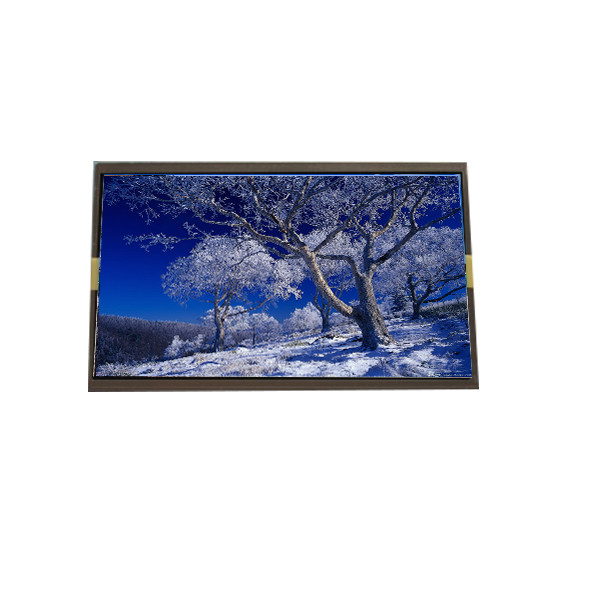

LP121S4-B2QT 12.1 inch 800*600 LCD Screen Module for Laptop

All Category

Floor Standing Digital Signage

LP121S4-B2QT 12.1 inch 800*600 LCD Screen Module for Laptop

Brand Name:	LG
Model Number:	LP121S4-B2QT
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP121S4-B2QT

Diagonal Size:

12.1"

Resolution:

800(RGB)×600, SVGA 82PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

246(W)×184.5(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Support Color:

262K 42%NTSC

Backlight:

CCFL [1 Pcs], 10K Hours, W/O Driver

Used For:

Laptop

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

LP121S4-B2QT 12.1 inch 800*600 LCD Screen Module for Laptop

LP121S4-B2QT LCD Panel Product details :

Brand	LG
Model P/N	LP121S4-B2QT
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	250.4(W)×188.8(H) mm
Outline Dim.	261(H)×199(V)×6.3(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	120 cd/m² (Typ.)
Contrast Ratio	200:1 (Min.) (TM)
View Direction	6 o'clock
Response Time	20/30 (Typ.)(Tr/Td)
Viewing Angle	45/45/10/30 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 42%NTSC
Light Source	CCFL [1 pcs], 10K hours, W/O Driver
Form Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LP121S4-B2QT 12.1 inch 800*600 LCD Screen Module for Laptop

LP121S4-B2QT LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LP121S4-B2QT LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LP121S4-B2QT LCD Panel Shipping and Package :

LP121S4-B2QT LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of LP121S4-B2QT ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of LP121S4-B2QT ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LP121S4-B2QT ?

A: Of course!sample order is welcome !

LP121S4-B2QT LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
