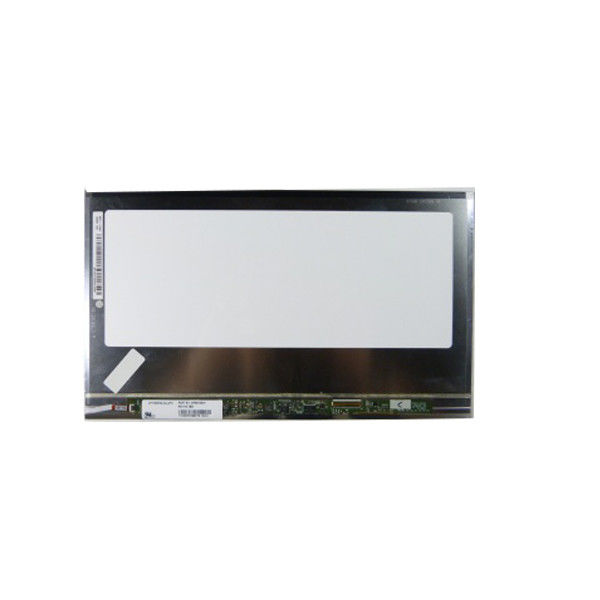

LP116WH4-SLP1 11.6 inch 1366*768 60Hz Lcd Laptop screen

Brand Name:	LG
Model Number:	LP116WH4-SLP1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP116WH4-SLP1

Diagonal Size:

11.6"

Resolution:

1366(RGB)×768, WXGA 135PPI

Active Area:

256.125(W)×144(H) Mm

Outline Size:

267(W)×157.8(H)×4.5(D) Mm

Color Depth:

262K 49%NTSC

Work Mode:

IPS, Normally Black, Transmissive

Backlight:

WLED, 12K Hours, With LED Driver

Used For:

Laptop、Pad & Tablet

Signal Type:

LVDS (1 Ch, 6-bit), 40 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP116WH4-SLP1 11.6 inch 1366*768 60Hz Lcd Laptop screen

LP116WH4-SLP1 LCD Panel Product details :

Brand	LG Display
Model P/N	LP116WH4-SLP1
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Size	267(W)×157.8(H)×4.5(D) mm
Surface	Antiglare
Brightness	400 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K 49%NTSC
Lamp Type	WLED, 12K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Slim (PCBA Bent, T≤3.0mm)
Application	Laptop,Pad & Tablet
Signal Interface	LVDS (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LP116WH4-SLP1 11.6 inch 1366*768 60Hz Lcd Laptop screen

LP116WH4-SLP1 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LP116WH4-SLP1 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LP116WH4-SLP1 LCD Panel Shipping and Package :

LP116WH4-SLP1 LCD Panel FAQ :

Q: How to order LG LP116WH4-SLP1 ?

A: We accept T/T , PAYPAL , WESTERN UNION .

Q: What happen if the lcd pane LP116WH4-SLP1 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: When will my order 11.6 inch lcd panel LP116WH4-SLP1 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you declared low value of my order about LP116WH4-SLP1 ?

A: Yes , we can . But you need to leave message to us before shipping.

LP116WH4-SLP1 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
