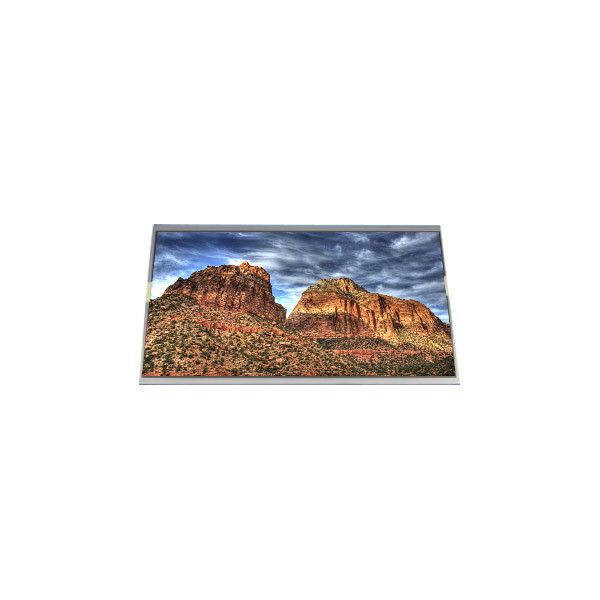

LP116WH1-TLN1 11.6 inch LCD panel 1366*768 40 Pins LCD Module

Brand Name:	LG
Model Number:	LP116WH1-TLN1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP116WH1-TLN1

Diagonal Size:

11.6"

Resolution:

1366(RGB)×768, WXGA 135PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

256.125(W)×144(H) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 43%NTSC

Lamp Type:

WLED, 12K Hours, With LED Driver

Used For:

Laptop、Netbook PC

Frame Rate:

LVDS (1 Ch, 6-bit), 40 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP116WH1-TLN1 11.6 inch LCD panel 1366*768 40 Pins LCD Module

LP116WH1-TLN1 LCD Panel Product details :

Brand	LG Display
Model P/N	LP116WH1-TLN1
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	261.15(W)×148.34(H) mm
Outline Dim.	268(H)×161.5(V)×5.2(D) mm
Treatment	Glare (Haze 0%)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Min.) (TM)
View Direction	6 o'clock
Response Time	16 (Typ.)(Tr+Td)
Viewing Angle	40/40/10/30 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 43%NTSC
Light Source	WLED, 12K hours, With LED Driver
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Designed For	Laptop,Netbook PC
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LP116WH1-TLN1 11.6 inch LCD panel 1366*768 40 Pins LCD Module

LP116WH1-TLN1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LP116WH1-TLN1 LCD Panel Shipping and Package :

LP116WH1-TLN1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LP116WH1-TLN1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LP116WH1-TLN1 LCD Panel FAQ :

Q: Can you tested the LP116WH1-TLN1 before shipping ?

A: Of course , our lcd panel LP116WH1-TLN1 was Strictly tested before shipping.

Q: How to order LG LP116WH1-TLN1 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd LP116WH1-TLN1 ?

A: 90 days .

Q: What happen if the lcd panel LP116WH1-TLN1 I received can't work ?

A: LP116WH1-TLN1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
