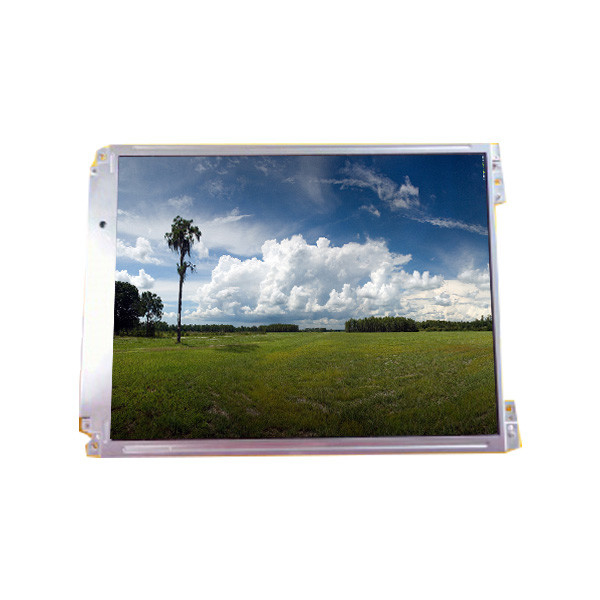

LP104V2-W Original 10.4 inch 640*480 LCD display for LG
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP104V2-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP104V2-W | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 211.2(W)×158.4(H) Mm | Work Mode: | TN, Normally White, Transmissive |
| Display Colors: | 262K 33%NTSC | Lamp Type: | 1 PcsCCFL, 20K Hours, No Driver |
| Used For: | Laptop | Frame Rate: | 60Hz |
Product Description
LP104V2-W Original 10.4 inch 640*480 LCD display for LG
LP104V2-W LCD Panel Product details :
| Brand | LG |
| Model P/N | LP104V2-W |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 216.2(W)×163.4(H) mm |
| Outline(mm) | 246.5 × 179.4× 8.5 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 150 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/45/50 (Typ.)(CR≥10) |
| Response | 30/50 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 33%NTSC |
| Backlight | 1 pcsCCFL, 20K hours, No Driver |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | TTL (1 ch, 6-bit), 31 pinsConnector |
| Voltage Supply | 3.3V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP104V2-W Original 10.4 inch 640*480 LCD display for LG | |
LP104V2-W Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP104V2-W LCD Panel Shipping and Package :
LP104V2-W Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP104V2-W About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP104V2-W LCD Panel FAQ :
Q: How do you ship my goods LP104V2-W ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LP104V2-W ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LG LP104V2-W at a very low value ?
A: Yes , we can . pls inform us before shipping .
Want to Know more details about this product
