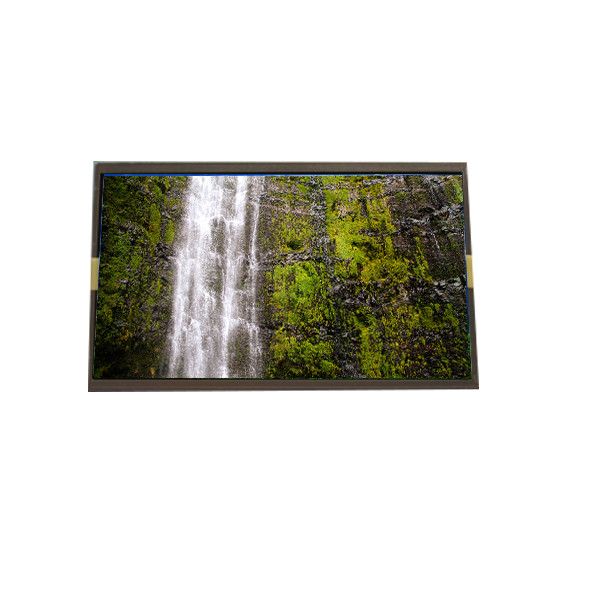

LP104S5-A2VT 10.4 inch 800*600 LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP104S5-A2VT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP104S5-A2VT | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 211.2(W)×158.4(H) Mm | Work Mode: | TN, Normally White, Transmissive |
| Display Colors: | 262K | Lamp Type: | 1 PcsCCFL, 20K Hours, No Driver |
| Used For: | Laptop | Signal Interface: | TTL (1 Ch, 6-bit), 30 Pins Connector |
Product Description
LP104S5-A2VT 10.4 inch 800*600 LCD display TFT Module
LP104S5-A2VT LCD Panel Product details :
| Brand | LG |
| Model P/N | LP104S5-A2VT |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.2(W)×161.8(H) mm |
| Outline(mm) | 224.5 × 172× 6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 170 cd/m² (Typ.) |
| Contrast Ratio | 200 : 1 (Typ.) (TM) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Response | 30/30 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 1 pcsCCFL, 20K hours, No Driver |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | TTL (1 ch, 6-bit), 30 pins Connector |
| Voltage Supply | 3.3V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP104S5-A2VT 10.4 inch 800*600 LCD display TFT Module | |
LP104S5-A2VT Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP104S5-A2VT LCD Panel Shipping and Package :
LP104S5-A2VT Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP104S5-A2VT About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP104S5-A2VT LCD Panel FAQ :
Q: How long will I receive my goods LP104S5-A2VT ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of LP104S5-A2VT ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of LP104S5-A2VT ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
