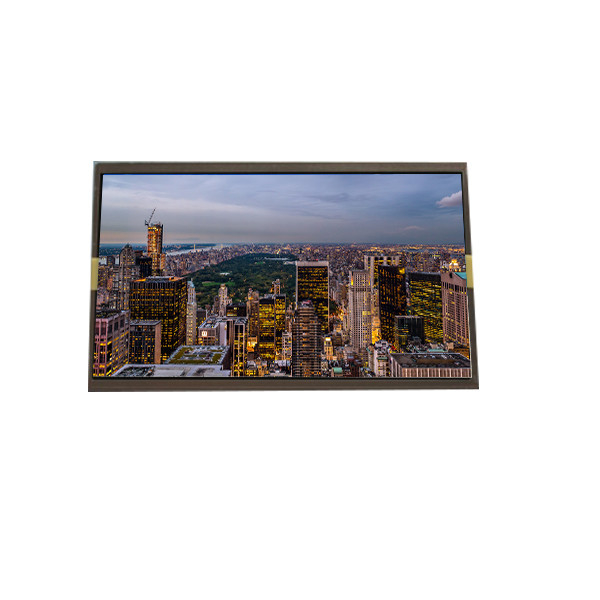

LP101WX1-SLN1 lcd display panel 10.1 inch 1280*800 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP101WX1-SLN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP101WX1-SLN1 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 216.96(W)×135.6(H) Mm | Work Mode: | IPS, Normally Black, Transmissive |
| Display Colors: | 262K 50% NTSC | Lamp Type: | WLED , 12K Hours , With LED Driver |
| Application: | Pad & Tablet | Signal Interface: | LVDS (1 Ch, 6-bit), 40 Pins Connector |
Product Description
LP101WX1-SLN1 lcd display panel 10.1 inch 1280*800 LCD Screen Module
LP101WX1-SLN1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP101WX1-SLN1 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 221.6(W)×140.3(H) mm |
| Outline(mm) | 241.86(W)×161.6(H)×5.2(D) |
| Luminance | 400 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K 50% NTSC |
| Mass | 160g (Max.) |
| Refresh Rate | 60Hz |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Work Mode | IPS, Normally Black, Transmissive |
| Response | 35 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 12K hours , With LED Driver |
| Used for | Pad & Tablet |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP101WX1-SLN1 lcd display panel 10.1 inch 1280*800 LCD Screen Module | |
LP101WX1-SLN1 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP101WX1-SLN1 LCD Panel Shipping and Package :
LP101WX1-SLN1 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP101WX1-SLN1 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP101WX1-SLN1 LCD Panel FAQ :
Q: Do you accept sample orders of LP101WX1-SLN1 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of LP101WX1-SLN1 vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of LP101WX1-SLN1 ?
A: The order will be shipped within 2-3 working days after received your payment.
