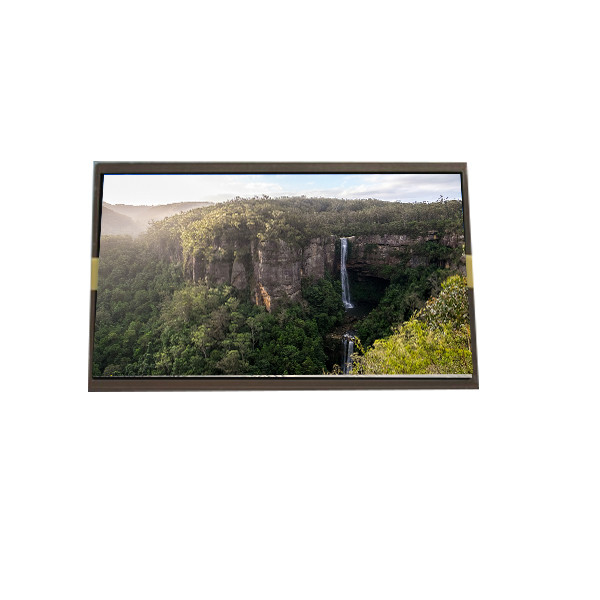

LP101WSA-TLP1 10.1 inch LCD display 1024*600 40 Pins LCD Screen

Brand Name:	LG
Model Number:	LP101WSA-TLP1
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

LP101WSA-TLP1

Diagonal Size:

10.1"

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 46%NTSC

Lamp Type:

WLED, 10K Hours, With LED Driver

Application:

Netbook PC

Signal Interface:

LVDS (1 Ch, 6-bit), 40 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP101WSA-TLP1 10.1 inch LCD display 1024*600 40 Pins LCD Screen

LP101WSA-TLP1 LCD Panel Product details :

Brand	LG Display
Model P/N	LP101WSA-TLP1
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	226(W)×128.7(H) mm
Outline Dim.	235(W)×143(H)×5.2(D) mm
Treatment	Antiglare
Luminance	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Min.) (TM)
View Direction	-
Response Time	16 (Typ.)(Tr+Td)
Viewing Angle	30/30/10/20 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 46%NTSC
Light Source	WLED, 10K hours, With LED Driver
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Designed For	Netbook PC
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LP101WSA-TLP1 10.1 inch LCD display 1024*600 40 Pins LCD Screen

LP101WSA-TLP1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LP101WSA-TLP1 LCD Panel Shipping and Package :

LP101WSA-TLP1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LP101WSA-TLP1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LP101WSA-TLP1 LCD Panel FAQ :

Q: Can you tested the LP101WSA-TLP1 before shipping ?

A: Of course , our lcd panel LP101WSA-TLP1 was Strictly tested before shipping.

Q: How to order LP101WSA-TLP1 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel LP101WSA-TLP1 received can't work ?

A: LP101WSA-TLP1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
