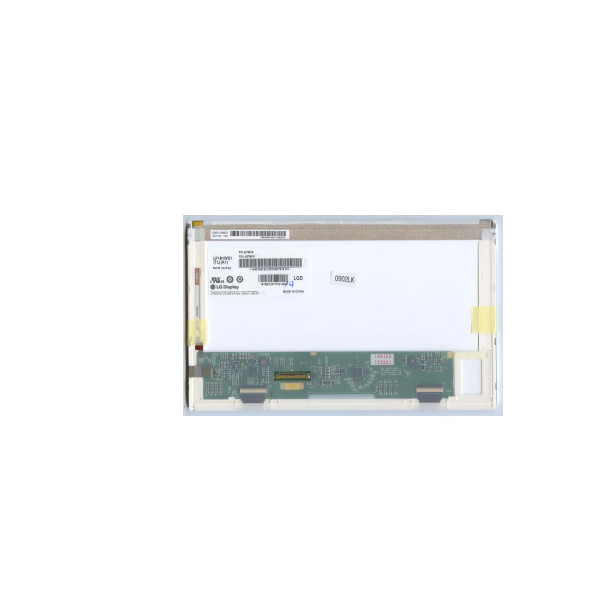

LP101WS1-TLA1 10.1 inch 1024*576 TFT LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP101WS1-TLA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP101WS1-TLA1 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×576, WSVGA 116PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline Size: | 235(W)×143(H)×5.2(D) Mm | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 262K 45%NTSC | Lamp Type: | WLED , 10K Hours , With LED Driver |
| Application: | Netbook PC | Signal Interface: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
LP101WS1-TLA1 10.1 inch 1024*576 TFT LCD screen
LP101WS1-TLA1 LCD Panel Product details :
| Brand | LG |
| Model P/N | LP101WS1-TLA1 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×576, WSVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 226.0(W)×128.7(H) mm |
| Outline Size | 235(W)×143(H)×5.2(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 30/30/10/20 (Min.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Touch Screen | Without |
| Application | Netbook PC |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LP101WS1-TLA1 10.1 inch 1024*576 TFT LCD screen | |
LP101WS1-TLA1 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP101WS1-TLA1 LCD Panel Shipping and Package :
LP101WS1-TLA1 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP101WS1-TLA1 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP101WS1-TLA1 LCD Panel FAQ :
Q: Can You declare my order of LP101WS1-TLA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LP101WS1-TLA1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LP101WS1-TLA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LP101WS1-TLA1 ?
A: We accept T/T , Paypal , western union .
