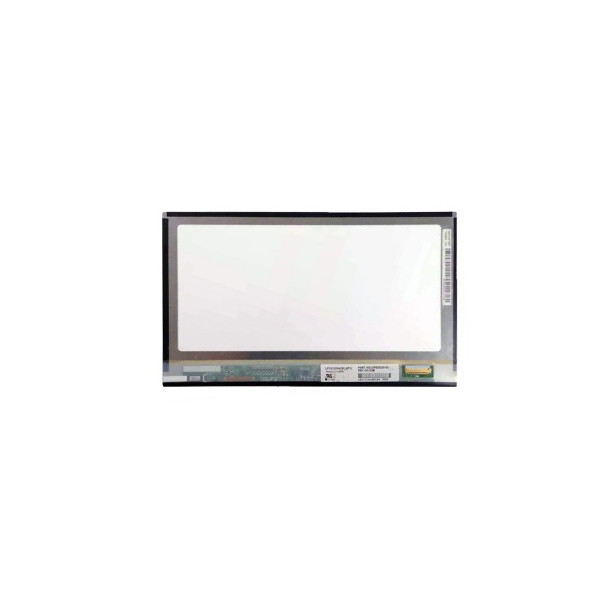

LP101WH4-SLP1 10.1 inch 1366*768 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP101WH4-SLP1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP101WH4-SLP1 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 155PPI | Active Area: | 222.52(W)×125.11(H) Mm |
| Outline Size: | 232.8 × 138.15× 4.35 (H×V×D) | Display Mode: | IPS, Normally Black, Transmissive |
| Display Colors: | 262K 50%NTSC | Lamp Type: | WLED, 12K Hours, With LED Driver |
| Application: | Pad & Tablet | Signal Interface: | LVDS (1 Ch, 6-bit), 40 PinsConnector |
Product Description
LP101WH4-SLP1 10.1 inch 1366*768 LCD Screen Module
LP101WH4-SLP1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP101WH4-SLP1 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 155PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.52(W)×125.11(H) mm |
| Bezel Opening | - |
| Outline(mm) | 232.8 × 138.15× 4.35 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K 50%NTSC |
| Backlight | WLED, 12K hours, With LED Driver |
| Mass | 125g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP101WH4-SLP1 10.1 inch 1366*768 LCD Screen Module | |
LP101WH4-SLP1 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP101WH4-SLP1 LCD Panel Shipping and Package :
LP101WH4-SLP1 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP101WH4-SLP1 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP101WH4-SLP1 LCD Panel FAQ :
Q: Can you tested the LP101WH4-SLP1 before shipping ?
A: Of course , our lcd panel LP101WH4-SLP1 was Strictly tested before shipping.
Q: How to order LG LP101WH4-SLP1 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd LP101WH4-SLP1 ?
A: 90 days .
Q: What happen if the lcd panel LP101WH4-SLP1 I received can't work ?
A: LP101WH4-SLP1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
