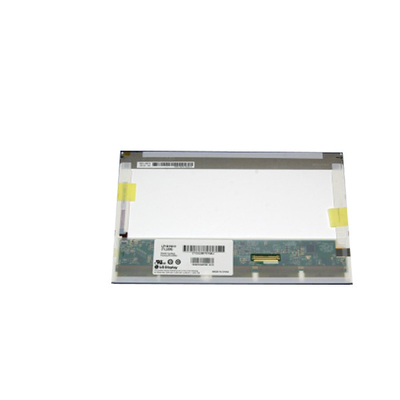

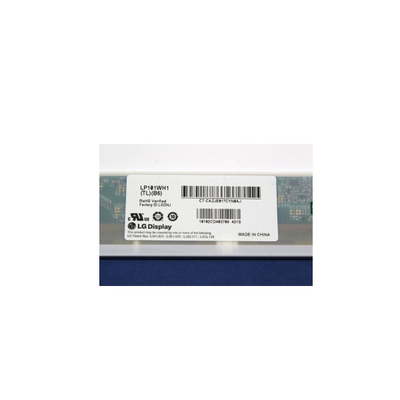

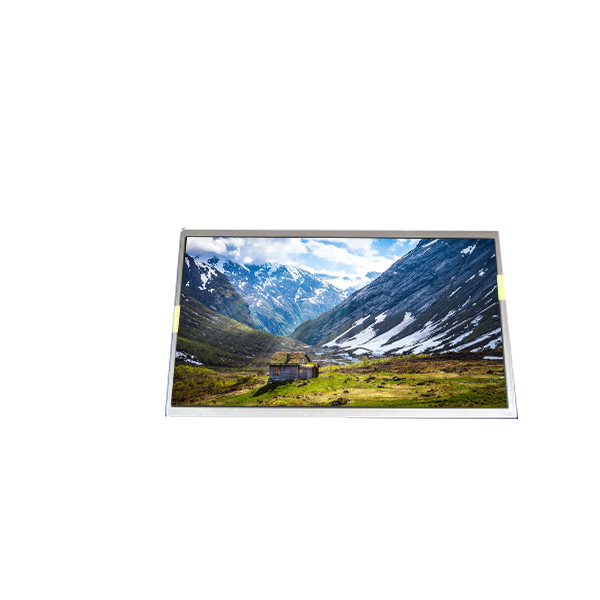

LP101WH1-TLB5 40 Pins LCD Screen 10.1 inch LCD Panel for Laptop

Brand Name:	LG
Model Number:	LP101WH1-TLB5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP101WH1-TLB5

Diagonal Size:

10.1"

Resolution:

1366(RGB)×768, WXGA 155PPI

Active Area:

222.73(W)×125.22(H) Mm

Outline Size:

235(H)×143(V)×5.2(D) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 53%NTSC

Lamp Type:

WLED, 10K Hours, With LED Driver

Application:

Laptop

Signal Interface:

LVDS (1 Ch, 6-bit), 40 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP101WH1-TLB5 40 Pins LCD Screen 10.1 inch LCD Panel for Laptop

LP101WH1-TLB5 LCD Panel Product details :

Brand	LG Display
Model P/N	LP101WH1-TLB5
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.73(W)×125.22(H) mm
Bezel Opening	226.0(W)×128.7(H) mm
Outline Dim.	235(H)×143(V)×5.2(D) mm
Treatment	Antiglare
Luminance	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Min.) (TM)
View Direction	-
Response Time	16 (Typ.)(Tr+Td)
Viewing Angle	30/30/10/20 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 53%NTSC
Light Source	WLED, 10K hours, With LED Driver
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LP101WH1-TLB5 40 Pins LCD Screen 10.1 inch LCD Panel for Laptop

LP101WH1-TLB5 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LP101WH1-TLB5 LCD Panel Shipping and Package :

LP101WH1-TLB5 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LP101WH1-TLB5 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LP101WH1-TLB5 LCD Panel FAQ :

Q: How can I trace my order of LP101WH1-TLB5 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of LP101WH1-TLB5?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LP101WH1-TLB5 via credit card ?

A: Yes!you can use your credit card through your Paypal account
