LCD Laptop Screen

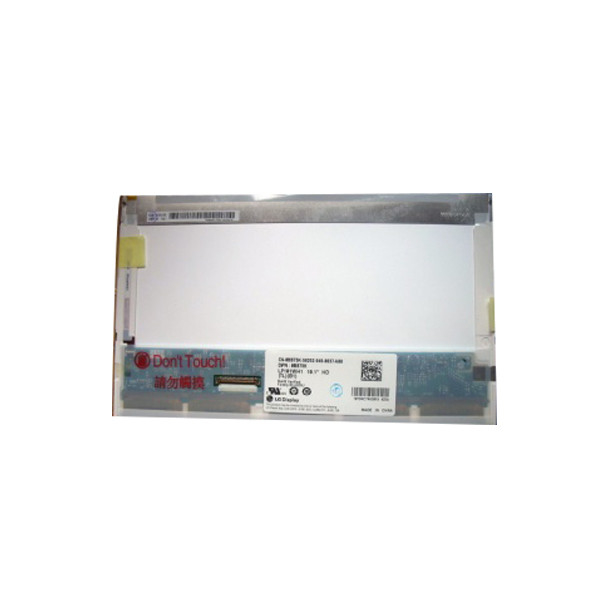

LP101WH1-TLB1 10.1 inch LCD Screen Display for Laptop

All Category

Floor Standing Digital Signage

LP101WH1-TLB1 10.1 inch LCD Screen Display for Laptop

Brand Name:	LG
Model Number:	LP101WH1-TLB1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP101WH1-TLB1

Diagonal Size:

10.1"

Resolution:

1366(RGB)×768, WXGA 155PPI

Active Area:

222.73(W)×125.22(H) Mm

Outline Size:

235 × 143× 5.3 (H×V×D)

Display Mode:

TN, Normally White, Transmissive

Display Colors:

262K 53%NTSC

Lamp Type:

4 StringsWLED, 15K Hours, With LED Driver

Application:

Laptop

Signal Interface:

LVDS (1 Ch, 6-bit), 40 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP101WH1-TLB1 10.1 inch LCD Screen Display for Laptop

LP101WH1-TLB1 LCD Panel Product details :

Brand	LG Display
Model P/N	LP101WH1-TLB1
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.73(W)×125.22(H) mm
Bezel Opening	226.0(W)×128.7(H) mm
Outline(mm)	235 × 143× 5.3 (H×V×D)
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Min.) (TM)
Viewing Angle	60/60/50/50 (Min.)(CR≥10)
Response	16 (Typ.)(Tr+Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 53%NTSC
Backlight	4 stringsWLED, 15K hours, With LED Driver
Outline Shape	Wedge (PCBA Bent, T≥5.2mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LP101WH1-TLB1 10.1 inch LCD Screen Display for Laptop

LP101WH1-TLB1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LP101WH1-TLB1 LCD Panel Shipping and Package :

LP101WH1-TLB1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LP101WH1-TLB1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LP101WH1-TLB1 LCD Panel FAQ :

Q: How do you ship my goods LP101WH1-TLB1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd display screen LP101WH1-TLB1 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of LP101WH1-TLB1 ?

A: 90 days warranty .
