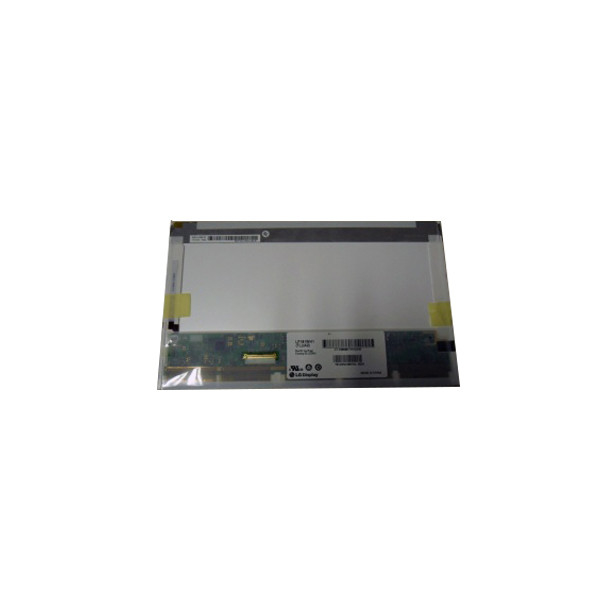

LP101WH1-TLA2 Original 10.1 inch 1366*768 TFT LCD Panel LVDS screen

All Category

Floor Standing Digital Signage

LP101WH1-TLA2 Original 10.1 inch 1366*768 TFT LCD Panel LVDS screen

Brand Name:	LG
Model Number:	LP101WH1-TLA2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP101WH1-TLA2

Diagonal Size:

10.1"

Resolution:

1366(RGB)×768, WXGA 155PPI

Active Area:

222.73(W)×125.22(H) Mm

Outline Size:

235(W)×143(H)×5.2(D) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

Lamp Type:

6 StringsWLED, 10K Hours, With LED Driver

Application:

Laptop

Signal Interface:

LVDS (1 Ch, 6-bit), 40 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP101WH1-TLA2 Original 10.1 inch 1366*768 TFT LCD Panel LVDS screen

LP101WH1-TLA2 LCD Panel Product details :

Brand	LG Display
Model P/N	LP101WH1-TLA2
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.73(W)×125.22(H) mm
Bezel Opening	-
Outline Size	235(W)×143(H)×5.2(D) mm
Surface	Glare (Haze 0%)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Min.) (TM)
Viewing Angle	30/30/10/20 (Min.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	16 (Typ.)(Tr+Td)
Display Colors	262K
Lamp Type	6 stringsWLED, 10K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Application	Laptop
Signal Interface	LVDS (1 ch, 6-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LP101WH1-TLA2 Original 10.1 inch 1366*768 TFT LCD Panel LVDS screen

LP101WH1-TLA2 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LP101WH1-TLA2 LCD Panel Shipping and Package :

LP101WH1-TLA2 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LP101WH1-TLA2 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LP101WH1-TLA2 LCD Panel FAQ :

Q: Can you tested the LP101WH1-TLA2 before shipping ?

A: Of course , our lcd panel LP101WH1-TLA2 was Strictly tested before shipping.

Q: How to order LP101WH1-TLA2 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel LP101WH1-TLA2 received can't work ?

A: LP101WH1-TLA2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
