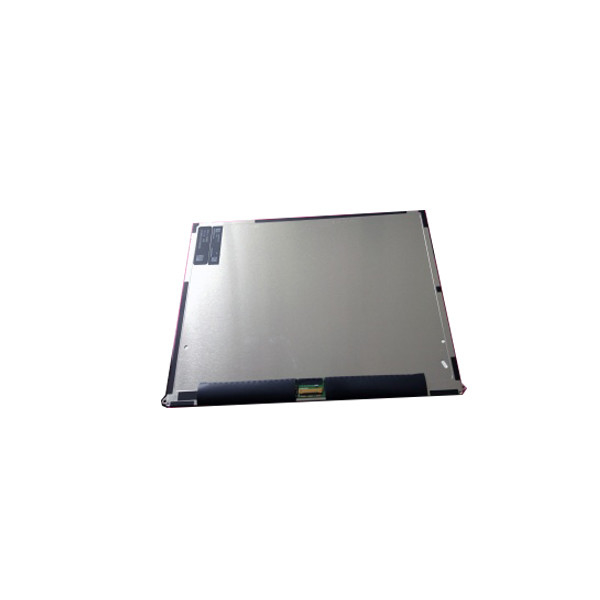

Original LP097X02-SLQE LCD Display Screen 1024*768 TFT IPS LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LP097X02-SLQE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LP097X02-SLQE | Diagonal Size: | 9.7" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 132PPI | Active Area: | 196.608(W)×147.456(H) Mm |
| Outline Size: | 210.32(W)×164.37(H)×5.23(D) Mm | Display Mode: | S-IPS, Normally Black, Transmissive |
| Display Colors: | 262K 51%NTSC | Lamp Type: | 6S6PWLED, 10K Hours, No Driver |
| Application: | Pad & Tablet | Signal Interface: | LVDS (1 Ch, 6-bit), 30 PinsConnector |
Product Description
Original LP097X02-SLQE LCD Display Screen 1024*768 TFT IPS LCD Panel
LP097X02-SLQE LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LP097X02-SLQE |
| Diagonal Size | 9.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 132PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 196.608(W)×147.456(H) mm |
| Bezel Opening | 201.01(W)×151.86(H) mm |
| Outline Size | 210.32(W)×164.37(H)×5.23(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | S-IPS, Normally Black, Transmissive |
| Color Depth | 262K 51%NTSC |
| Backlight | 6S6PWLED, 10K hours, No Driver |
| Mass | 148g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original LP097X02-SLQE LCD Display Screen 1024*768 TFT IPS LCD Panel | |
LP097X02-SLQE Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LP097X02-SLQE LCD Panel Shipping and Package :
LP097X02-SLQE Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LP097X02-SLQE About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LP097X02-SLQE LCD Panel FAQ :
Q: If I order LP097X02-SLQE now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for LP097X02-SLQE ?
A: Of course!sample order is welcome !
Q: How long is the warranty of LP097X02-SLQE ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LP097X02-SLQE ?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
