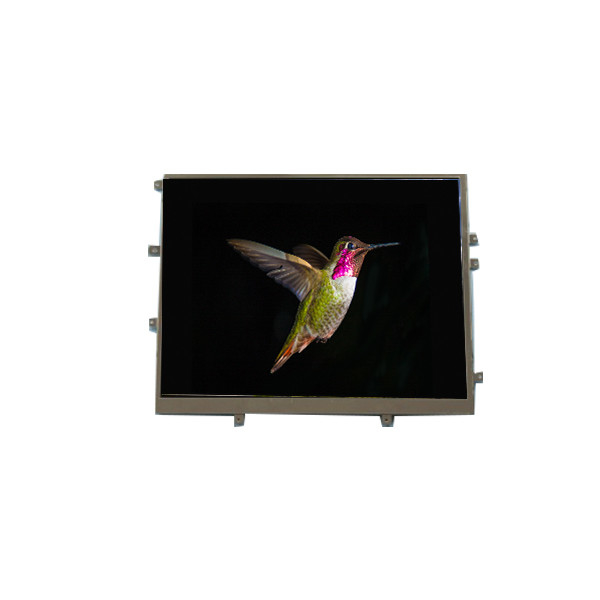

LP097X02-SLQ2 9.7 inch LCD screen TFT LCD Display

Brand Name:	LG
Model Number:	LP097X02-SLQ2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LP097X02-SLQ2

Diagonal Size:

Resolution:

1024(RGB)×768, XGA 132PPI

Active Area:

196.608(W)×147.456(H) Mm

Display Mode:

S-IPS, Normally Black, Transmissive

Outline Size:

210.2(W)×166.2(H)×5.75(D) Mm

Display Colors:

262K 51%NTSC

Lamp Type:

6S6PWLED, 10K Hours, Without Driver

Application:

Pad & Tablet

Signal Interface:

LVDS (1 Ch, 6-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LP097X02-SLQ2 9.7 inch LCD screen TFT LCD Display

LP097X02-SLQ2 LCD Panel Product details :

Brand	LG Display
Model P/N	LP097X02-SLQ2
Diagonal Size	9.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 132PPI
Pixel Format	RGB Vertical Stripe
Active Area	196.608(W)×147.456(H) mm
Bezel Opening	-
Outline Size	210.2(W)×166.2(H)×5.75(D) mm
Surface	Glare (Haze 0%), Hard coating (3H), Antireflection
Brightness	400 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	S-IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K 51%NTSC
Lamp Type	6S6PWLED, 10K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	TBD
Application	Pad & Tablet
Signal Interface	LVDS (1 ch, 6-bit), 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LP097X02-SLQ2 9.7 inch LCD screen TFT LCD Display

LP097X02-SLQ2 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LP097X02-SLQ2 LCD Panel Shipping and Package :

LP097X02-SLQ2 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

LP097X02-SLQ2 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LP097X02-SLQ2 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of LP097X02-SLQ2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of LP097X02-SLQ2 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LP097X02-SLQ2 ?

A: Of course!sample order is welcome !
