LCD Screen Display Panel
>

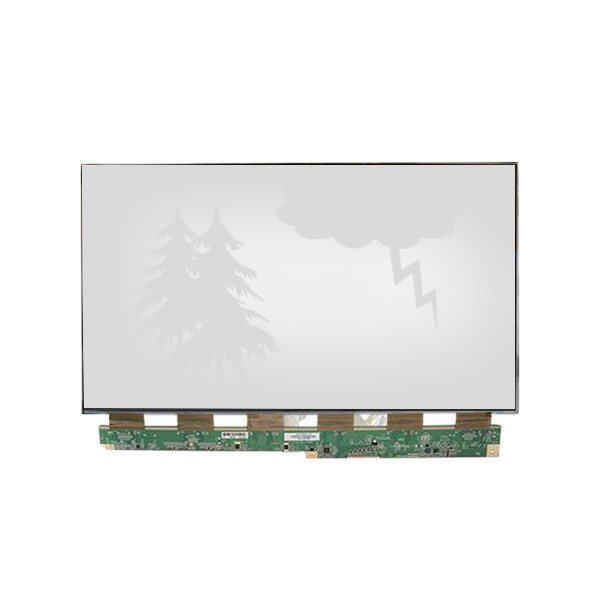

MV190E0B-N20 19.0 inch lcd screen panel for Desktop Monitor

MV190E0B-N20 19.0 inch lcd screen panel for Desktop Monitor

Brand Name: BOE
Model Number: BT032HVME101
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
BT032HVME101
Diagonal Size:
19.0"
Panel Type:
A-Si TFT-LCD, CELL, FOB
Resolution:
1280(RGB)×1024, SXGA 86PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
374.784(W)×299.827(H) Mm
Display Mode:
ADS, Normally Black, Transmissive
Application:
Desktop Monitor
Supply Ability:
100000 Unit/Units per Month
Product Description

MV190E0B-N20 19.0 inch lcd screen panel for Desktop Monitor



MV190E0B-N20 LCD Panel Product details :



Brand BOE
Model P/N MV190E0B-N20
Diagonal Size 19.0"
Panel Type a-Si TFT-LCD, CELL, FOB
Resolution 1280(RGB)×1024, SXGA 86PPI
Pixel Format RGB Vertical Stripe
Active Area 374.784(W)×299.827(H) mm
Bezel Opening -
Outline Size 388.7(W)×308.7(H)×1.32(D) mm
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 0 cd/m²
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Response 14 (Typ.)(G to G) ms
Good View at Symmetry
Work Mode ADS, Normally Black, Transmissive
Glass Thickness 0.50+0.50 mm
Transmissivity 4.5% (Typ.)(with Polarizer)
Color Depth 16.7M
Backlight No B/L
Mass 361g (Typ.)
Used for Desktop Monitor
Refresh Rate 60Hz
Touchscreen Without
Driver IC list Built-in COF 6 source chips
Signal Type LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C




MV190E0B-N20 LCD Panel Shipping and Package :

MV190E0B-N20 19.0 inch lcd screen panel for Desktop Monitor 0



MV190E0B-N20 LCD Screen Shipping Information :



Tracking Number Update:
If your tracking number shows no logistics information, it could be due to delays in updates from logistics companies handling numerous parcels. Please reach out to us immediately instead of opening a dispute. We are committed to resolving any issues promptly and ensuring your satisfaction.



Time of Shipment:
We aim to ship all products within 1-5 weekdays. Our packing and shipping process is tailored to customer orders and involves thorough quality checks before dispatch. Therefore, a brief handling period is required to ensure product quality.



Delivery Time:
Unforeseen circumstances like hurricanes or rainstorms may affect logistics, causing delays. We assure you that we are honest sellers who prioritize your satisfaction. Kindly allow the logistics company adequate processing time to deliver your package to you.



Local Post Office Handling:
If your logistics information indicates that the package has reached the local post office but you haven't been contacted, please proactively reach out to your local post office to arrange for package collection. Failure to do so may result in the parcel being returned, and any consequences will be the buyer's responsibility.



Protection Time Extension:
Should the product protection period expire after we've shipped your item, please extend the protection period by contacting us promptly.



Import Duties:
Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These additional costs are the responsibility of the buyer. We advise buyers to be aware of their country's import regulations and associated fees before making a purchase.


MV190E0B-N20 LCD Screen Quality & Warranty :



Quality Assurance: We ensure the quality of all LCD (touch screen) products through comprehensive testing using specialized equipment. Our commitment is to deliver only products of the highest quality. We understand that any issues with the product become our responsibility, and we strive to prevent such occurrences.


Product Dissatisfaction: In the event that you are dissatisfied with our products, we kindly request that you notify us within 3 days of receiving your parcel. To facilitate the resolution process, please provide real pictures and other evidence showcasing the issue. Upon verification, we will offer either a replacement or refund if the products do not meet the described specifications.


Return Policy: If you have possessed the item for more than 7 days, it is deemed used or second-hand. Under these circumstances, we can only provide a replacement service after receiving the returned item.


MV190E0B-N20 LCD Panel FAQ :


Q: Can you give me a discount if I need a large quantity of MV190E0B-N20 ?

A: Of course!If you make a large order, we will give you a discount.



Q: Can You declare my order of MV190E0B-N20 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



Q: How to make payment of MV190E0B-N20 ?

A: We accept T/T , Paypal , western union .



Q: How long is the warranty ?

A: We offer 90 days warranty .



MV190E0B-N20 LCD Screen Service Hours :



For any inquiries or issues, please feel free to contact us. We are dedicated to providing sincere service to our customers. Our service hours follow Beijing time:



Weekdays:
Morning: 8:00 AM to 12:00 PM
Afternoon: 1:30 PM to 6:10 PM


Additionally, we have customer service available 24 hours to assist you with problem-solving. Please don't hesitate to reach out to us whenever you need assistance.
