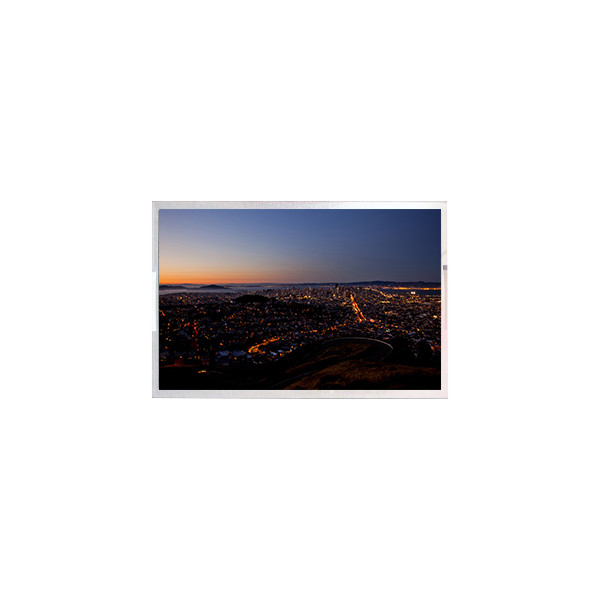

M102AWF5 R0 10.3 inch 1920*720 lcd screen panel display
Product Details:
Place of Origin: | China |
Brand Name: | IVO |
Model Number: | M102AWF5 R0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | M102AWF5 R0 | Diagonal Size: | 10.3" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 200PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 243.648(W)×91.368(H) Mm |
Display Colors: | 16.7M 75% NTSC | Application: | Automotive Display |
Product Description
M102AWF5 R0 10.3 inch 1920*720 lcd screen panel display
M102AWF5 R0 LCD Panel Product details :
Brand | IVO |
Model P/N | M102AWF5 R0 |
Diagonal Size | 10.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×720 200PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 243.648(W)×91.368(H) mm |
Bezel Opening | 246.448(W)×94.1(H) mm |
Outline Dim. | 261.14(H)×109.9(V) ×15.8(D) mm |
Treatment | Hard coating |
Luminance | 800 cd/m² (Typ.) |
Contrast Ratio | 1200:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 20 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 16.7M 75% NTSC |
Light Source | WLED [8S3P] , 30K hours , W/O Driver |
Weight | 350g (Max.) |
Designed For | Automotive Display |
Frame Rate | 55Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 8-bit) + SPI , 50 pins Connector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
