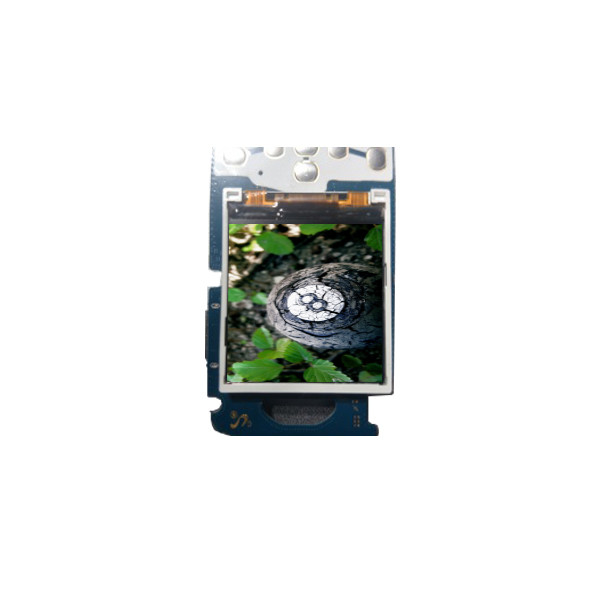

BT015SQMM002 1.5 inch LCD Display LCD screen PANEL For BOE

BT015SQMM002 1.5 inch LCD Display LCD screen PANEL For BOE

Product Details:

Place of Origin: China
Brand Name: BOE
Model Number: BT015SQMM002

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information
Model Name: BT015SQMM002 Diagonal Size: 1.5"
Panel Type: A-Si TFT-LCD, LCM Resolution: 128(RGB)×128 119PPI
Pixel Format: RGB Vertical Stripe Active Area: 27.264(W)×27.264(H) Mm
Application: Mobile Phone Display Colors: 65K 50%NTSC

Product Description

BT015SQMM002 1.5 inch LCD Display LCD screen PANEL For BOE



BT015SQMM002 LCD Panel Product details :



Brand BOE
Model P/N BT015SQMM002
Diagonal Size 1.5"
Panel Type a-Si TFT-LCD, LCM
Resolution 128(RGB)×128 119PPI
Pixel Format RGB Vertical Stripe
Active Area 27.264(W)×27.264(H) mm
Bezel Opening -
Luminance -
View Direction 6 o'clock
Viewing Angle 45/45/55/20 (Typ.)(CR≥10)
Support Color 65K 50% NTSC
Weight TBD
Frame Rate -
Contrast Ratio 200:1 (Typ.) (TM)
Response Time 30 (Typ.)(Tr+Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED
Designed For Mobile Phone
Touch Panel Without
Environment Operating Temperature: -20 ~ 65 °C; Storage Temperature: -40 ~ 85 °C
BT015SQMM002 1.5 inch LCD Display LCD screen PANEL For BOE



BT015SQMM002 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!


BT015SQMM002 LCD Panel Shipping and Package :

BT015SQMM002 1.5 inch LCD Display LCD screen PANEL For BOE 0

BT015SQMM002 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

BT015SQMM002 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

BT015SQMM002 LCD Panel FAQ :


Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.



Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .



Q: Do you accept the BT015SQMM002 sample order?

A: Yes , sample order is welcome.



Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
