LCD Touch Panel Display

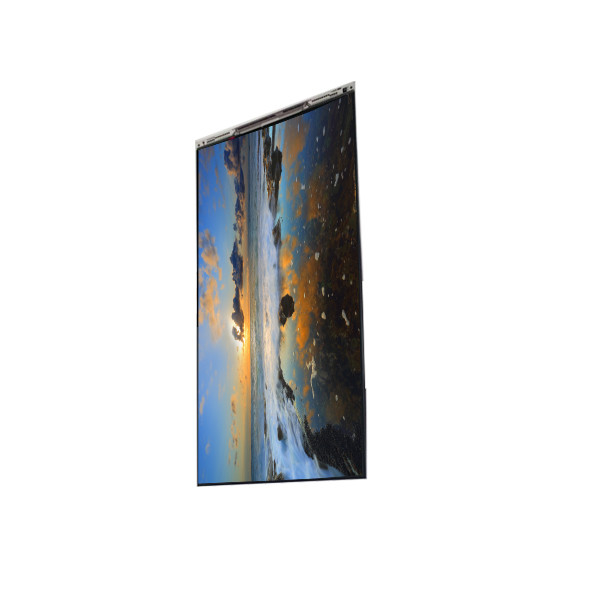

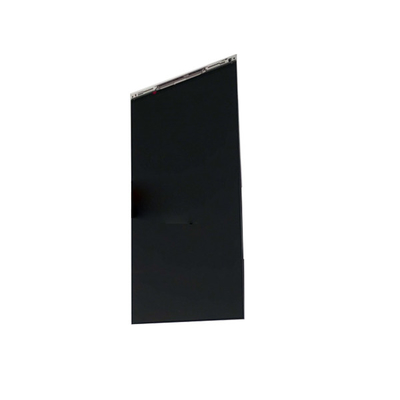

BS062FBM-L00-6801 6.2 inch LCD Display LCD screen PANEL For Mobile Phone

All Category

Floor Standing Digital Signage

BS062FBM-L00-6801 6.2 inch LCD Display LCD screen PANEL For Mobile Phone

Brand Name:	BOE
Model Number:	BS062FBM-L00-6801
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

BS062FBM-L00-6801

Diagonal Size:

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1080(RGB)×2270 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×143.01(H) Mm

Application:

Mobile Phone

Display Colors:

16.7M

Supply Ability:

100000 Unit/Units per Month

Product Description

BS062FBM-L00-6801 6.2 inch LCD Display LCD screen PANEL For Mobile Phone

BS062FBM-L00-6801 LCD Panel Product details :

Brand	BOE
Model P/N	BS062FBM-L00-6801
Diagonal Size	6.2"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1080(RGB)×2270 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×143.01(H) mm
Bezel Opening	-
Outline Size	72.63(W)×152.305(H) mm
Surface	Hard coating
Brightness	450 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Display Mode	-
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M
Lamp Type	8S2PWLED, Without Driver
Frequency	60Hz
Touch Screen	In-Cell Touch, I²C
Panel Weight	50.0g (Typ.)
Application	Mobile Phone
Signal Interface	MIPI (4 data lanes), 40 pins Connector
Input Voltage	1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -40 ~ 80 °C
BS062FBM-L00-6801 6.2 inch LCD Display LCD screen PANEL For Mobile Phone

BS062FBM-L00-6801 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

BS062FBM-L00-6801 LCD Panel Shipping and Package :

BS062FBM-L00-6801 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

BS062FBM-L00-6801 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

BS062FBM-L00-6801 LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the BS062FBM-L00-6801 sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
