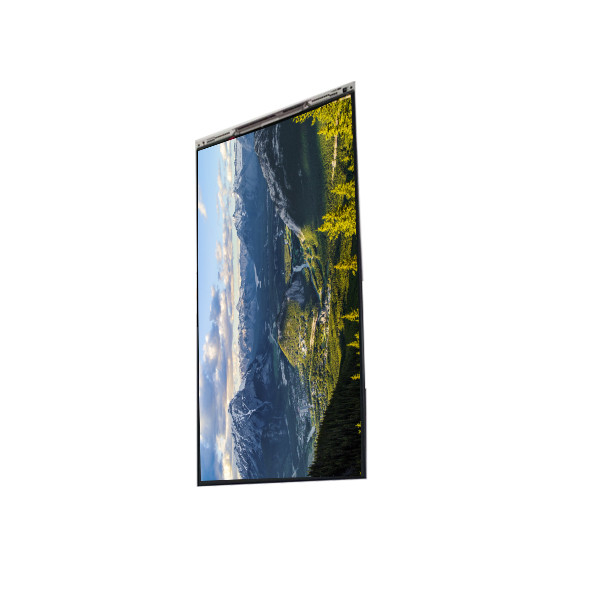

BS057Y8M-N00-680G 5.6 inch LCD Display LCD screen PANEL For BOE
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BS057Y8M-N00-680G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BS057Y8M-N00-680G | Diagonal Size: | 5.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1080(RGB)×2160 427PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 64.152(W)×128.304(H) Mm |
| Application: | Mobile Phone | Display Colors: | 16.7M 70%NTSC |
Product Description
BS057Y8M-N00-680G 5.6 inch LCD Display LCD screen PANEL For BOE
BS057Y8M-N00-680G LCD Panel Product details :
| Brand | BOE |
| Model P/N | BS057Y8M-N00-680G |
| Diagonal Size | 5.6" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1080(RGB)×2160 427PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.152(W)×128.304(H) mm |
| Outline Dim. | 66.152(H)×134.304(V)×2.37(D)mm |
| Treatment | Hard coating |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 70%NTSC |
| Light Source | WLED [5S3P], W/O Driver |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | PCAP |
| Interface Type | MIPI (4 data lanes), 30 pinsConnector |
| Power Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
| BS057Y8M-N00-680G 5.6 inch LCD Display LCD screen PANEL For BOE | |
BS057Y8M-N00-680G Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
BS057Y8M-N00-680G LCD Panel Shipping and Package :
BS057Y8M-N00-680G Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
BS057Y8M-N00-680G About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
BS057Y8M-N00-680G LCD Panel FAQ :
Q: How long will I receive my goods of lcd BS057Y8M-N00-680G ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the BS057Y8M-N00-680G sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel BS057Y8M-N00-680G before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of BS057Y8M-N00-680G ?
A: 90DAYS.
