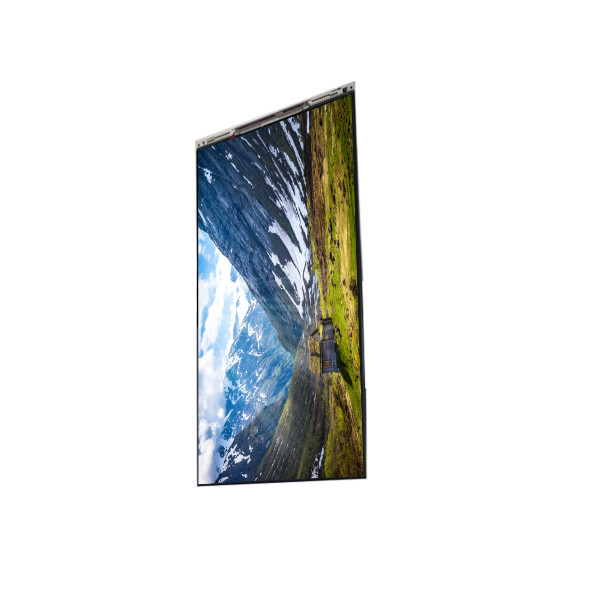

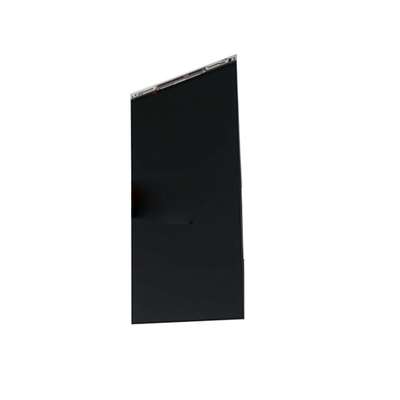

BS055FHG-E41-6900 5.5 inch LCD Display LCD screen PANEL For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BS055FHG-E41-6900 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BS055FHG-E41-6900 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, COG | Resolution: | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Application: | Mobile Phone | Display Colors: | 16.7M 70%NTSC |
Product Description
BS055FHE-E41-6900 5.5 inch LCD Display LCD screen PANEL For Mobile Phone
BS055FHE-E41-6900 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BS055FHG-E41-6900 |
| Diagonal Size | 5.5" |
| Panel Type | LTPS TFT-LCD, CELL, COG |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline(mm) | 69.84 × 127.16× 0.4 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.20+0.20 mm |
| Transmissivity | 4.2% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | In-Cell Touch |
| Driver IC list | Built-in COG OTM1906C |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| BS055FHE-E41-6900 5.5 inch LCD Display LCD screen PANEL For Mobile Phone | |
BS055FHE-E41-6900 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
BS055FHE-E41-6900 LCD Panel Shipping and Package :
BS055FHE-E41-6900 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
BS055FHE-E41-6900 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
BS055FHE-E41-6900 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel BS055FHG-E41-6900 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
