LCD Screen Display Panel

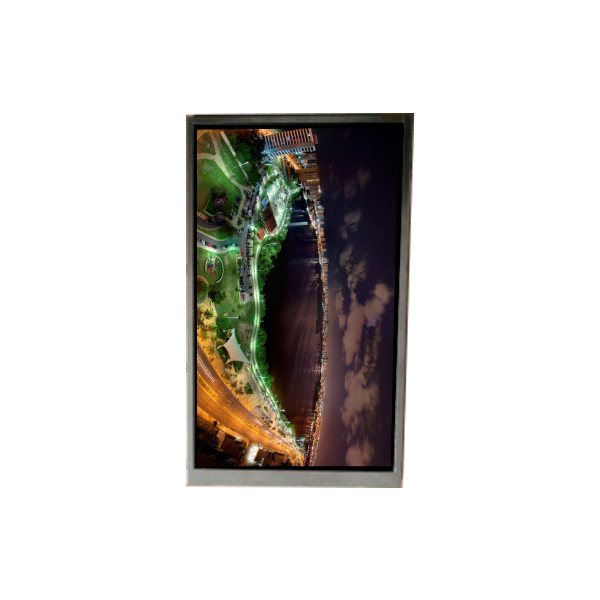

BS052FHE-N30-6Q00 5.2 inch LCD Display LCD screen PANEL

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

BS052FHE-N30-6Q00 5.2 inch LCD Display LCD screen PANEL

Brand Name:	BOE
Model Number:	BS052FHE-N30-6Q00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

BS052FHE-N30-6Q00

Diagonal Size:

Panel Type:

LTPS TFT-LCD, CELL, Full Cell

Resolution:

1080(RGB)×1920, FHD 423PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

64.8(W)×115.2(H) Mm

Application:

Mobile Phone

Display Colors:

16.7M 70%NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

BS052FHE-N30-6Q00 5.2 inch LCD Display LCD screen PANEL

BS052FHE-N30-6Q00 LCD Panel Product details :

Brand	BOE
Model P/N	BS052FHE-N30-6Q00
Diagonal Size	5.2"
Panel Type	LTPS TFT-LCD, CELL, Full Cell
Resolution	1080(RGB)×1920, FHD 423PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.8(W)×115.2(H) mm
Outline (mm)	66.4×121.2×0.3 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Glass Thickness	0.15+0.15 mm
Transmissivity	4.7% (Typ.)(with APCF)
Color Depth	16.7M 70%NTSC
Backlight	No B/L
Used for	Mobile Phone
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG OTM1901A, NT35596
Signal Type	MIPI (4 data lanes)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
BS052FHE-N30-6Q00 5.2 inch LCD Display LCD screen PANEL

BS052FHE-N30-6Q00 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

BS052FHE-N30-6Q00 LCD Panel Shipping and Package :

BS052FHE-N30-6Q00 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

BS052FHE-N30-6Q00 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

BS052FHE-N30-6Q00 LCD Panel FAQ :

Q: How to order lcd panel BS052FHE-N30-6Q00 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of BS052FHE-N30-6Q00 ?

A: NEW Product warranty is 90 days.
